Lat Pulldown Station SQMIZE® PREMIUM BISON BDB-LA

Lat Pulldown Station SQMIZE® PREMIUM BISON BDB-LA

Lat Pulldowns, Rows and Belt Squats on one station, plate-loaded and without a weight stack: The SQMIZE® PREMIUM BISON BDB-LA accommodates 50 mm weight plates directly, allowing you to use the plates already available in your training space. Dimensions: 148 cm deep, 88 cm wide and 220 cm high.

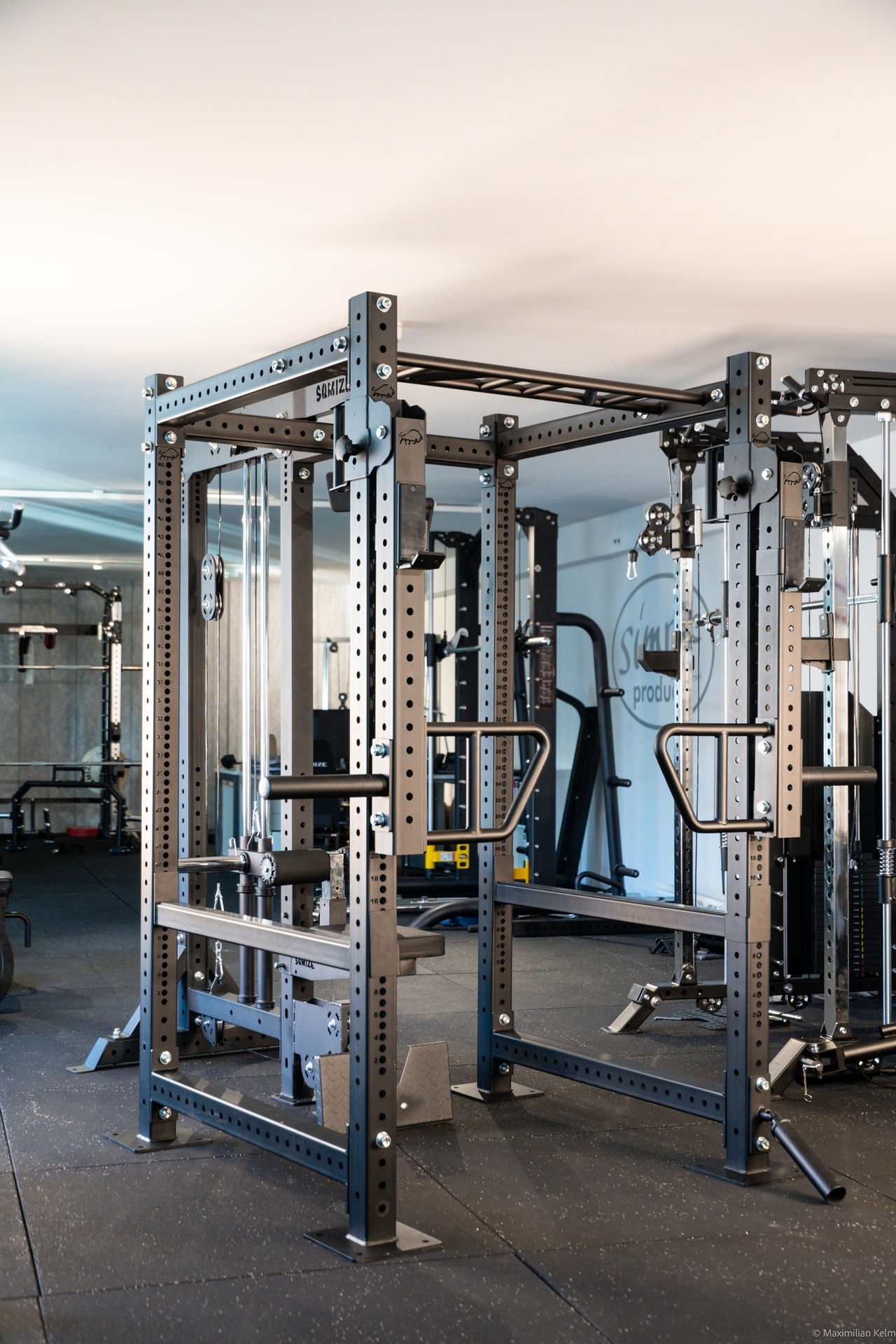

Rack-Mounted or Freestanding

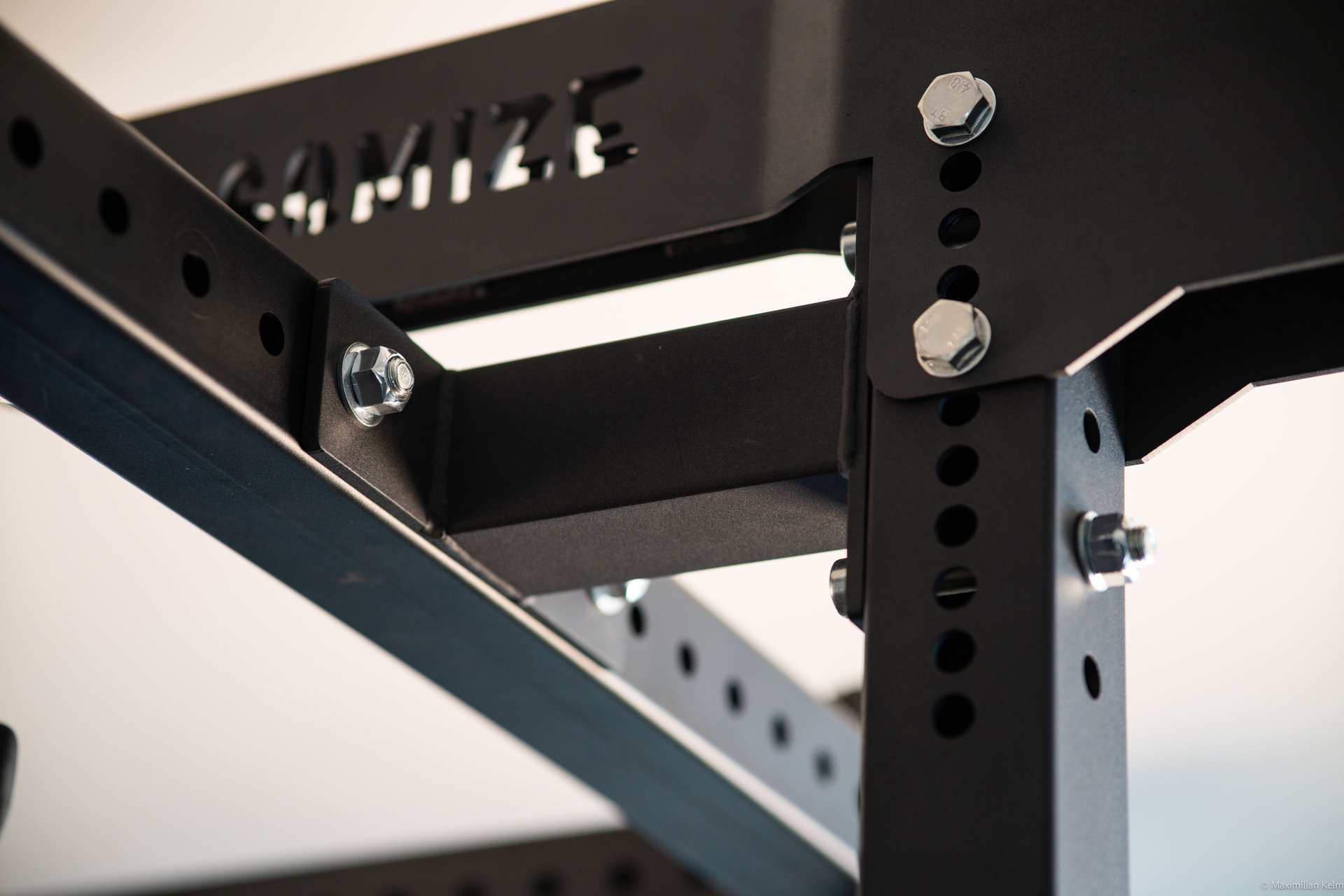

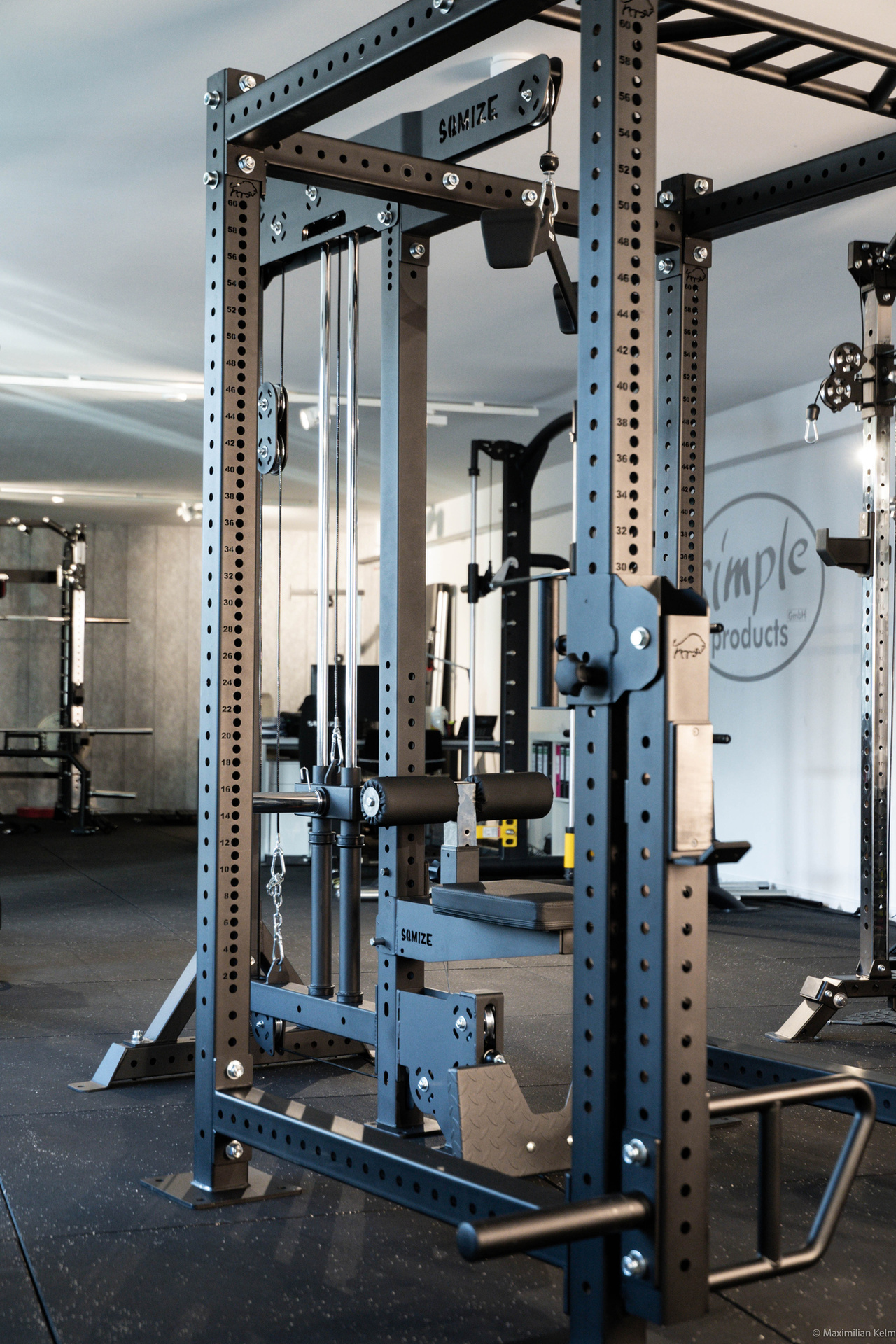

The BDB-LA can be attached to racks from the PREMIUM BISON series with heights of 210 cm and 240 cm. Multiple mounting positions allow you to choose which side and orientation to use when connecting the station to your rack. With the standard mounting configuration, the total depth is 233 cm. The seat, knee pads and footplate can be removed without tools whenever you need to free up space inside the rack for Deadlifts or Squats.

The station works equally well as a standalone unit. Its frame is constructed from 75 x 75 mm steel profiles with a wall thickness of 3 mm. Combined with a net weight of 104 kg, this provides the stability required for independent use without a rack.

Three Training Functions in One Station

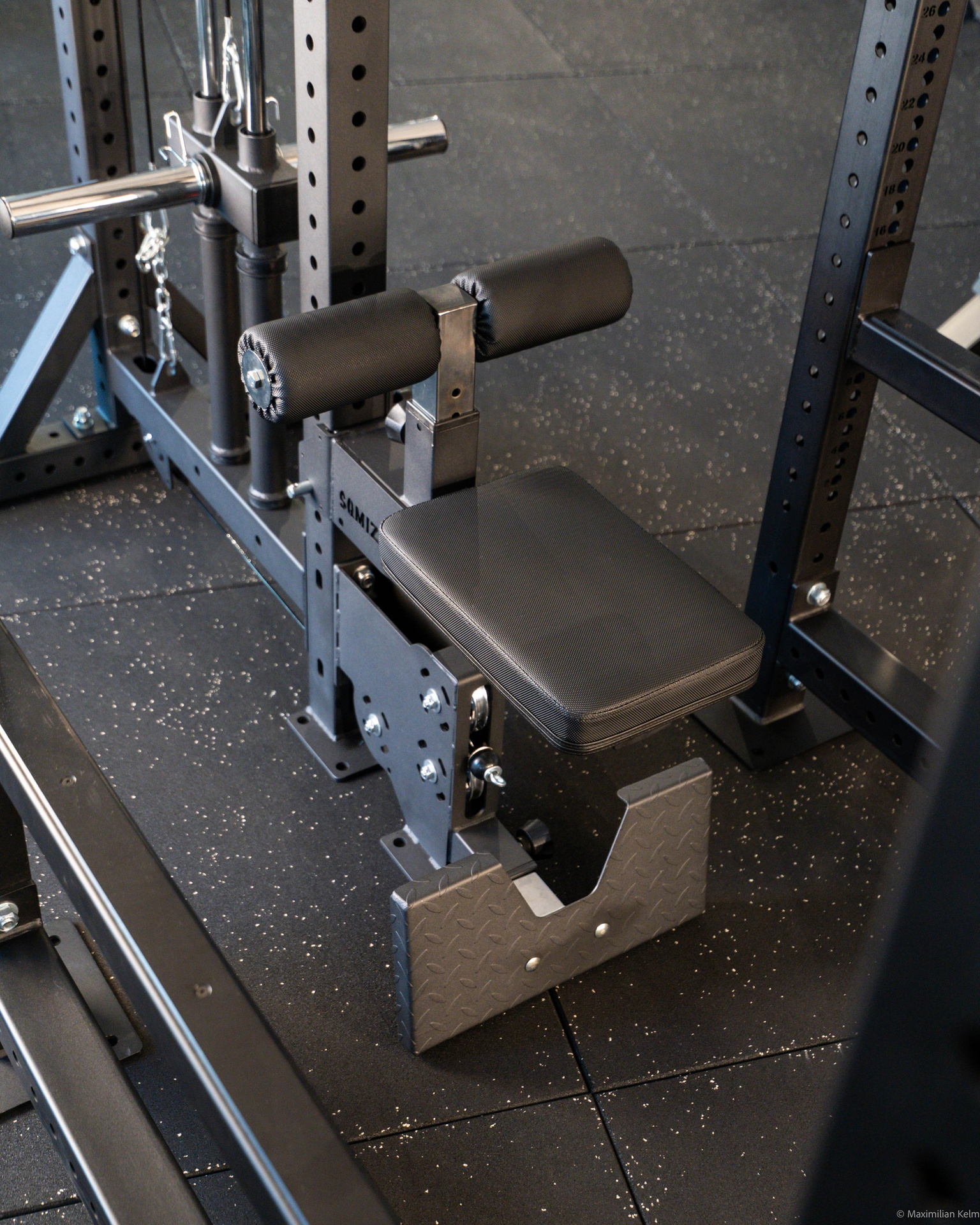

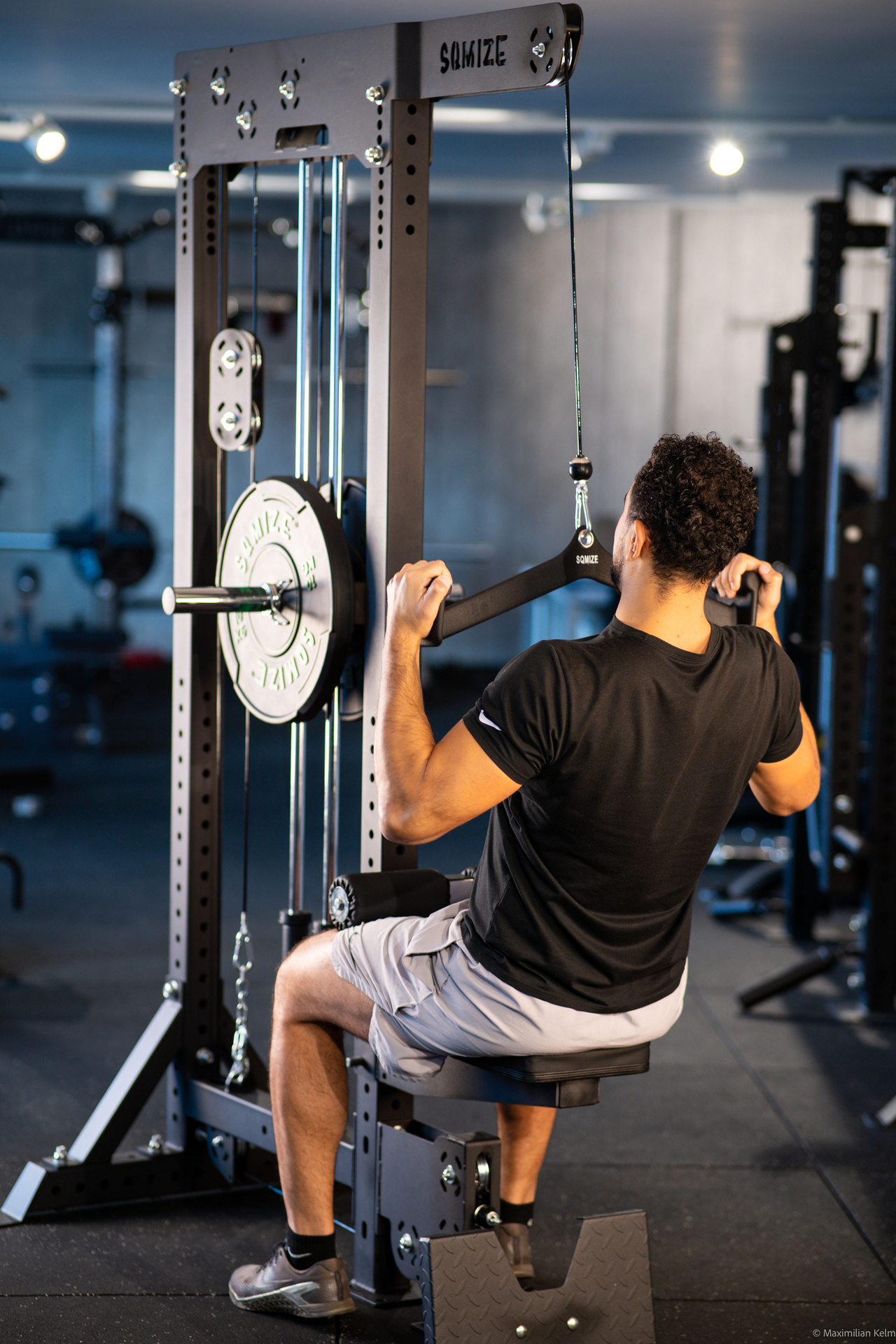

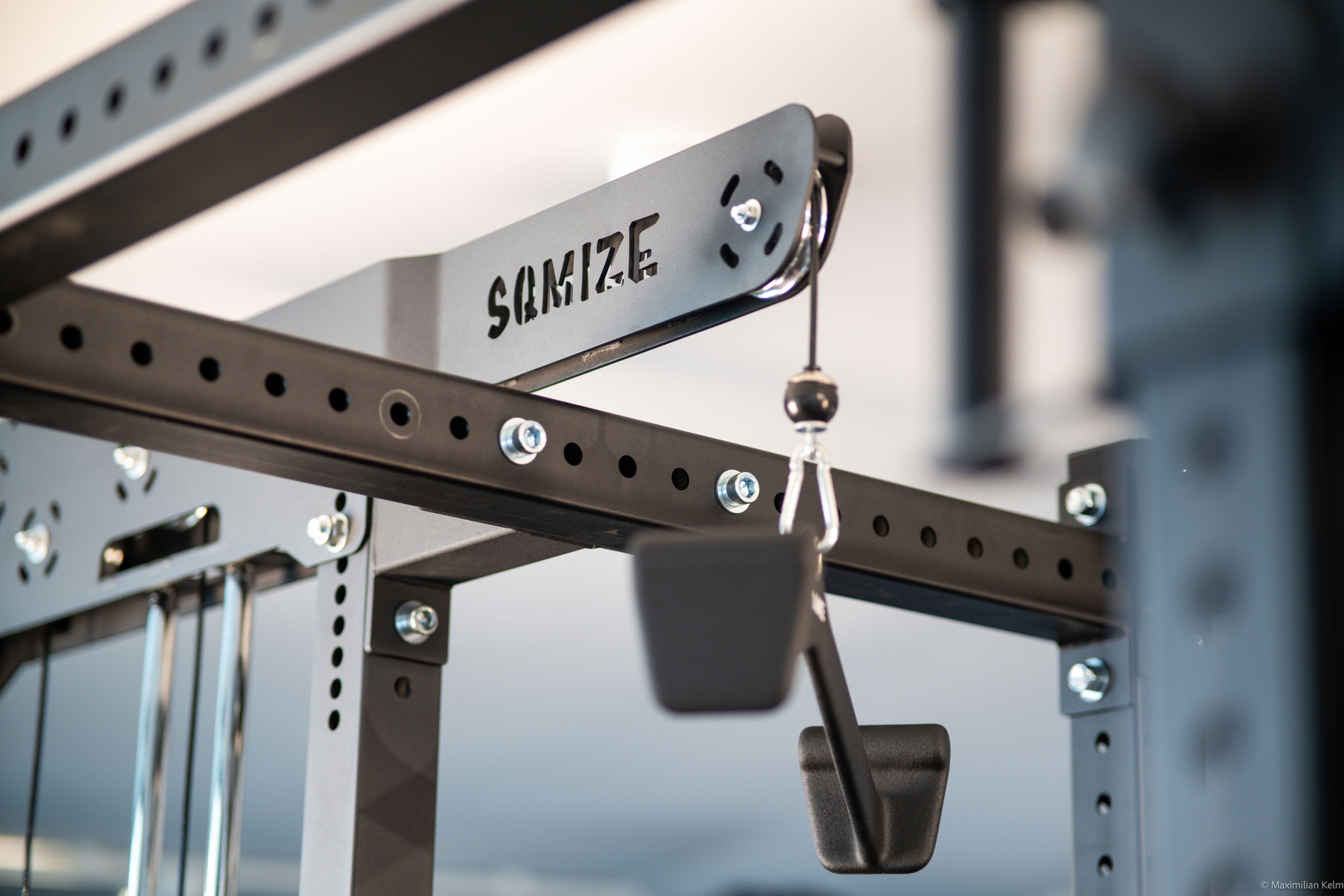

The upper pulley is designed for Lat Pulldowns. The downward pulling movement works the latissimus dorsi throughout its length while also engaging the rhomboids and biceps. The seat pad measures 37 x 25 cm with a thickness of 6 cm and offers 10 height adjustment positions. The knee pads, each measuring 19 cm in length with a diameter of 10 cm, lock into five height positions to secure the thighs during training.

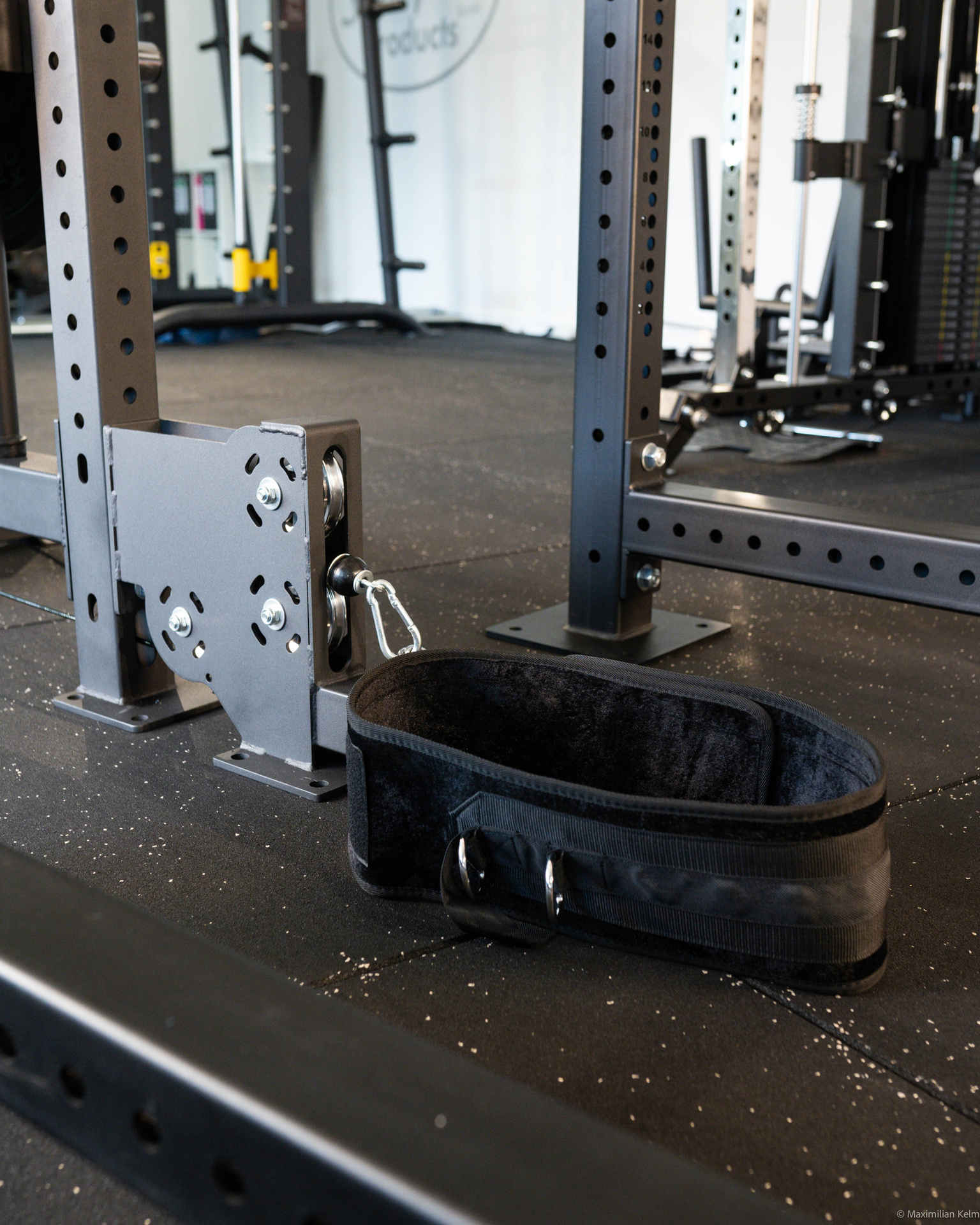

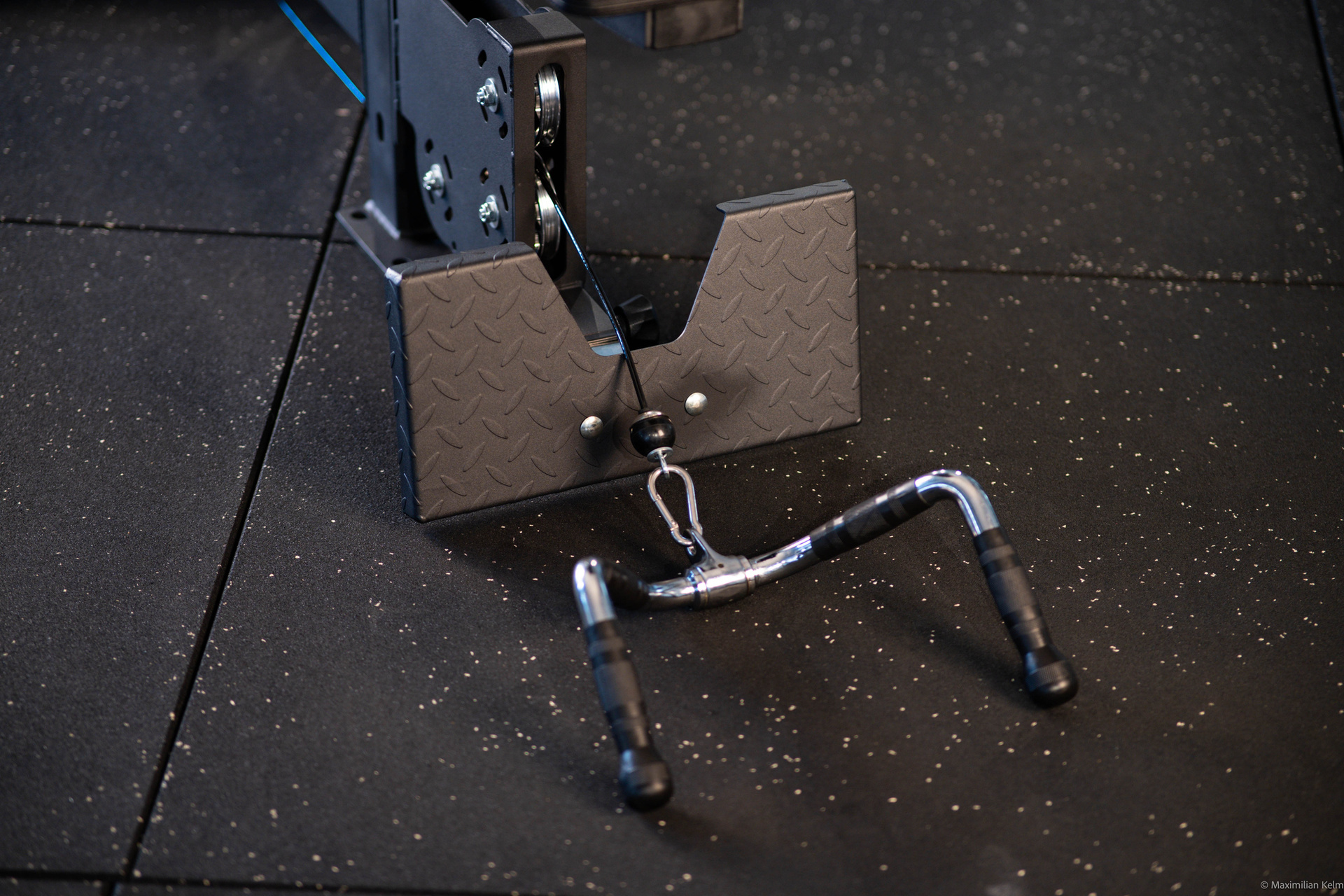

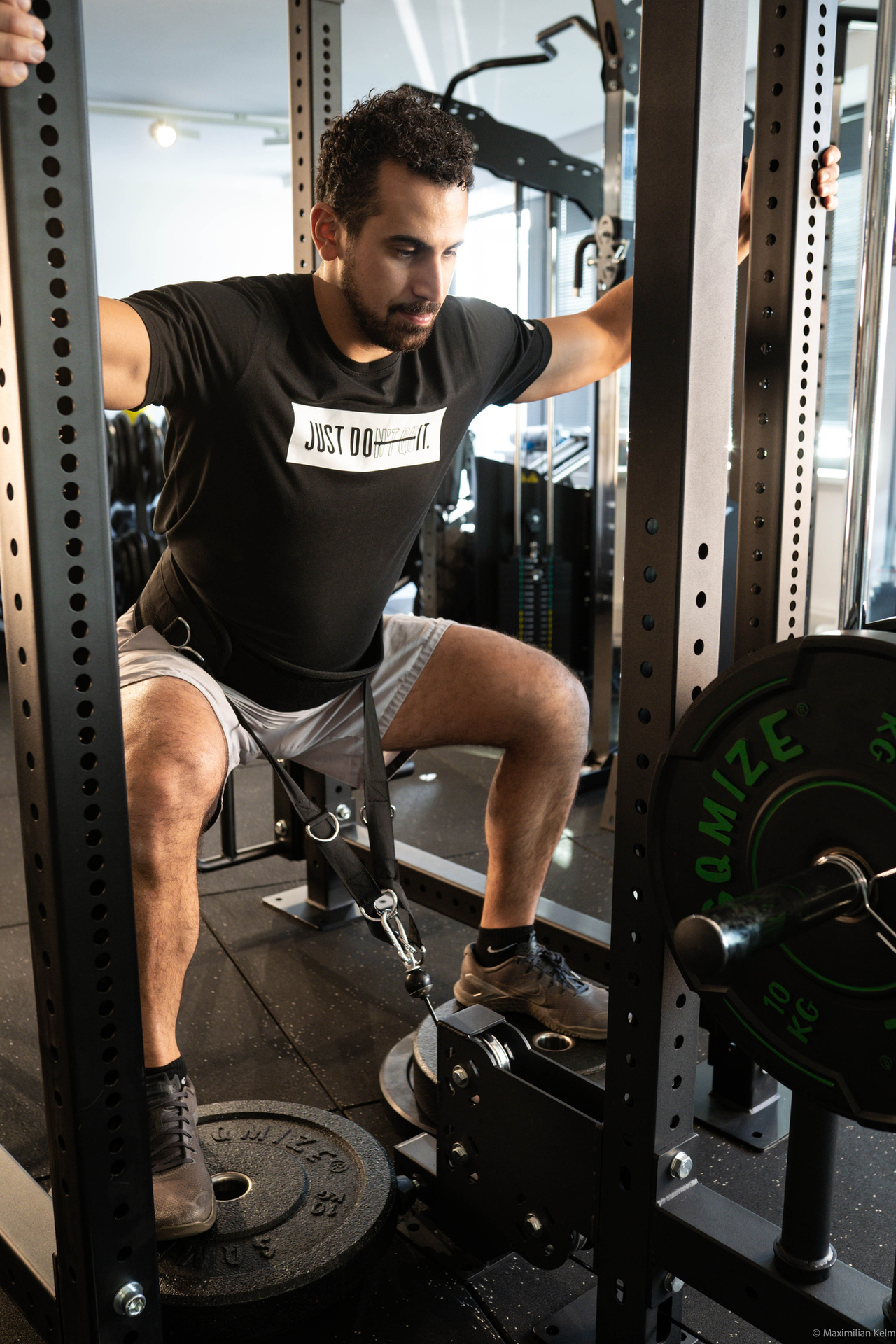

The lower pulley accommodates Rows, Curls, Triceps Pushdowns and Face Pulls. For Belt Squats, the non-slip footplate measuring 43 x 24 cm is used, offering five adjustment positions. The Belt Squat Belt connects to the lower pulley, directing the resistance vertically downward while avoiding direct axial compression of the spine. An additional leg roller pad measuring 21 cm in length with a diameter of 12 cm expands the leg training options.

Plate-Loaded Design for 50 mm Weight Plates

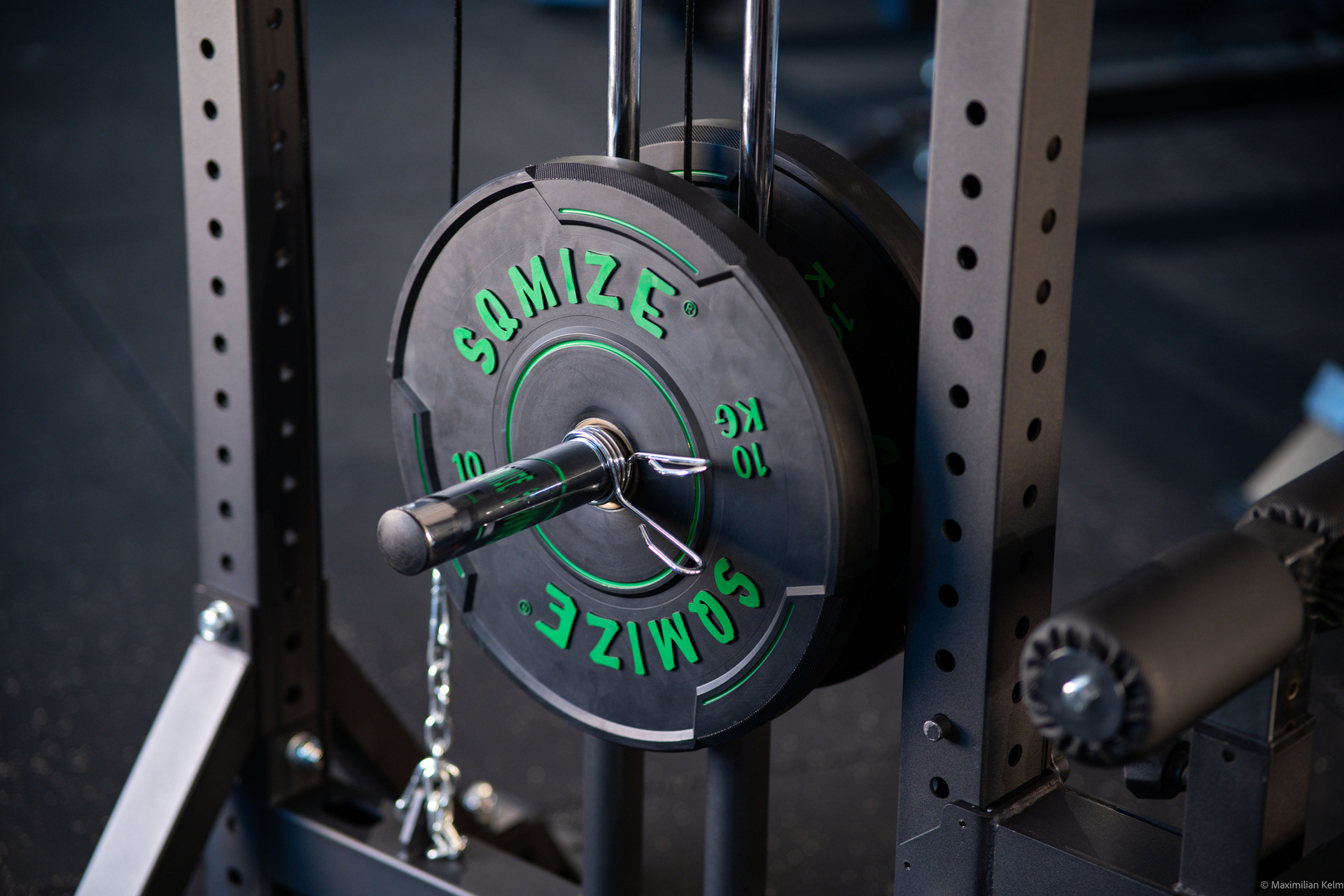

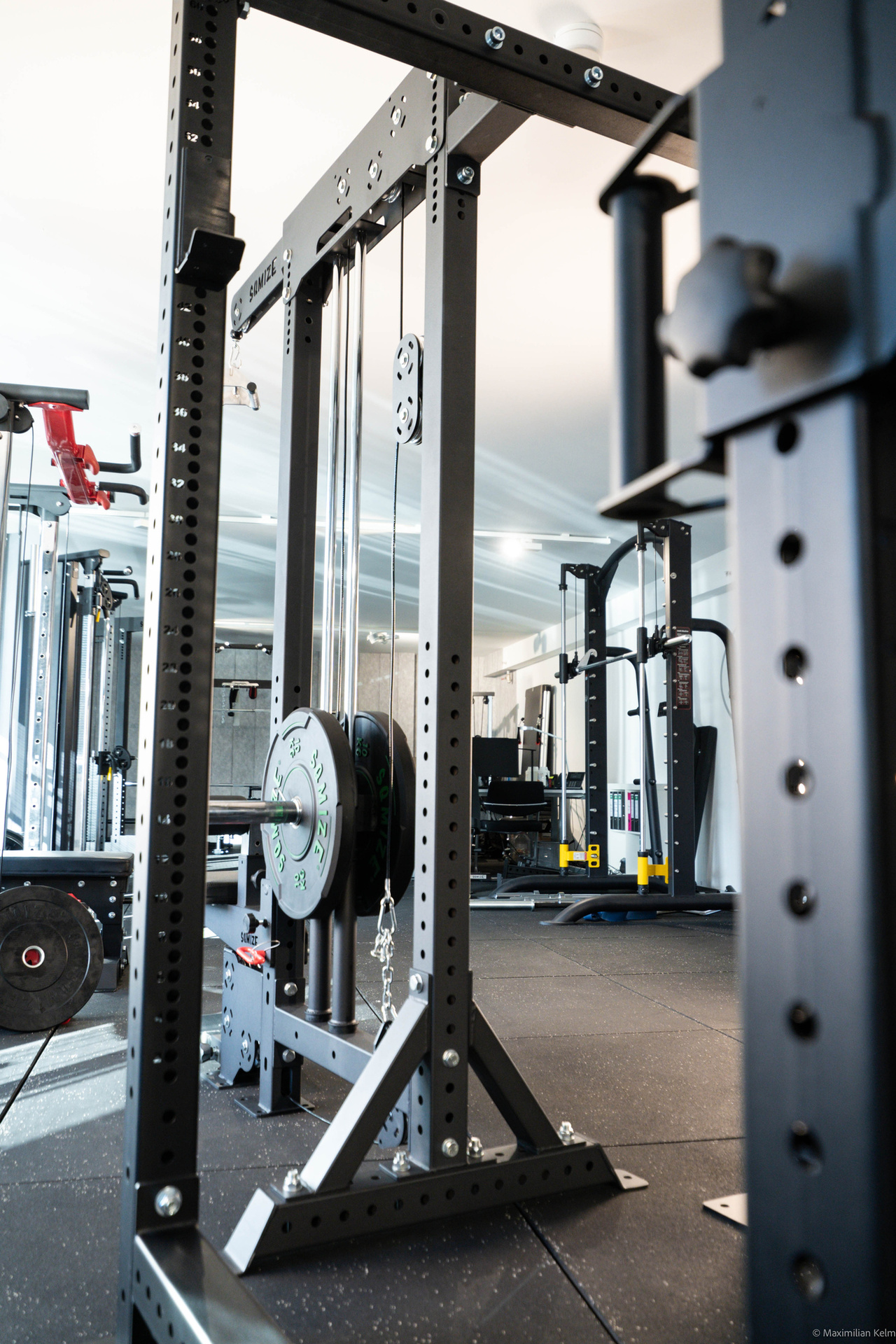

The weight plate holder accommodates 50 mm plates across a usable loading length of 25 cm, with a maximum weight load of 400 kg. The pulley ratio is 1:1, meaning the resistance at the handle corresponds to the loaded weight plates. Your existing weight plates can therefore be used directly on the station, eliminating the need for a separate weight stack.

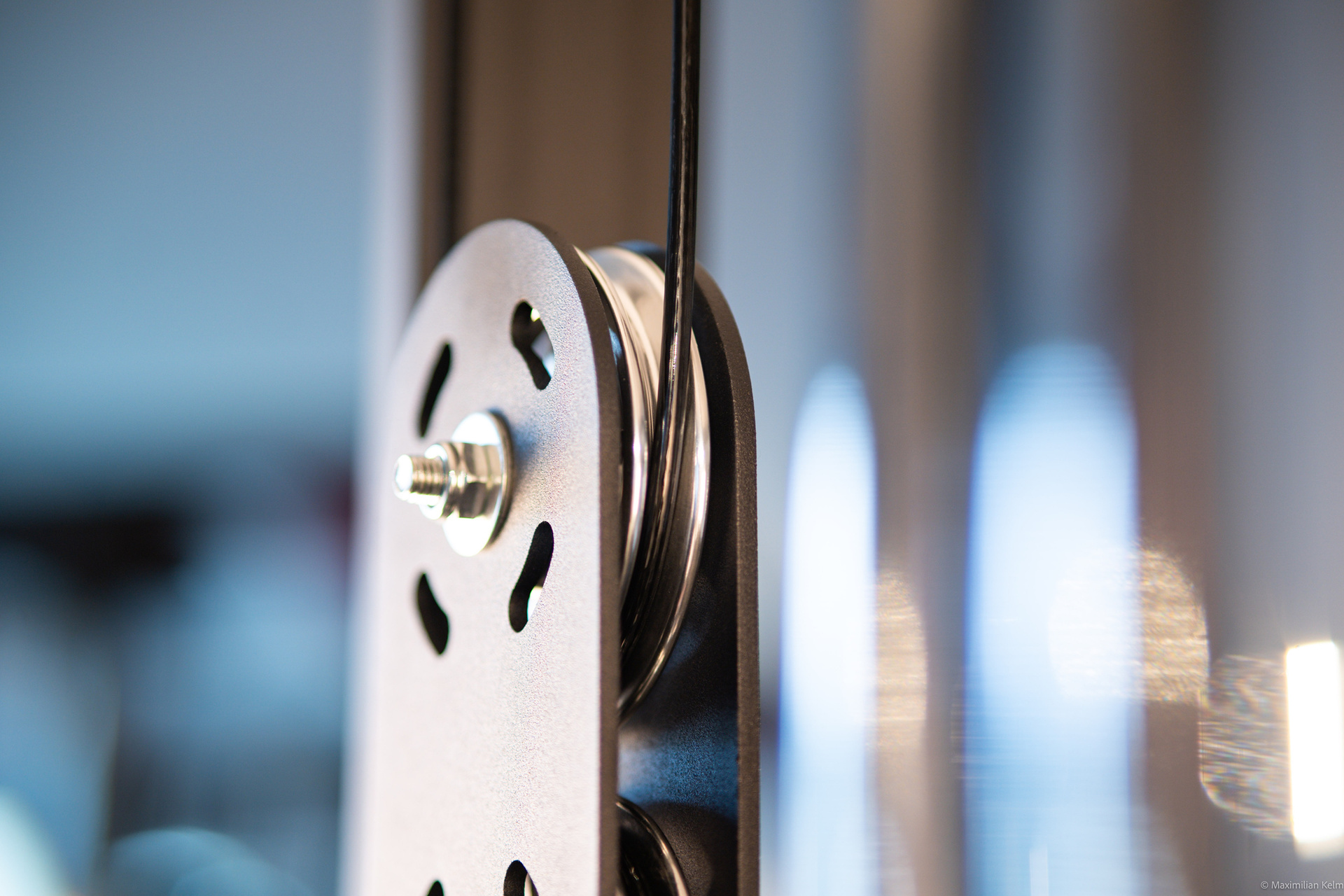

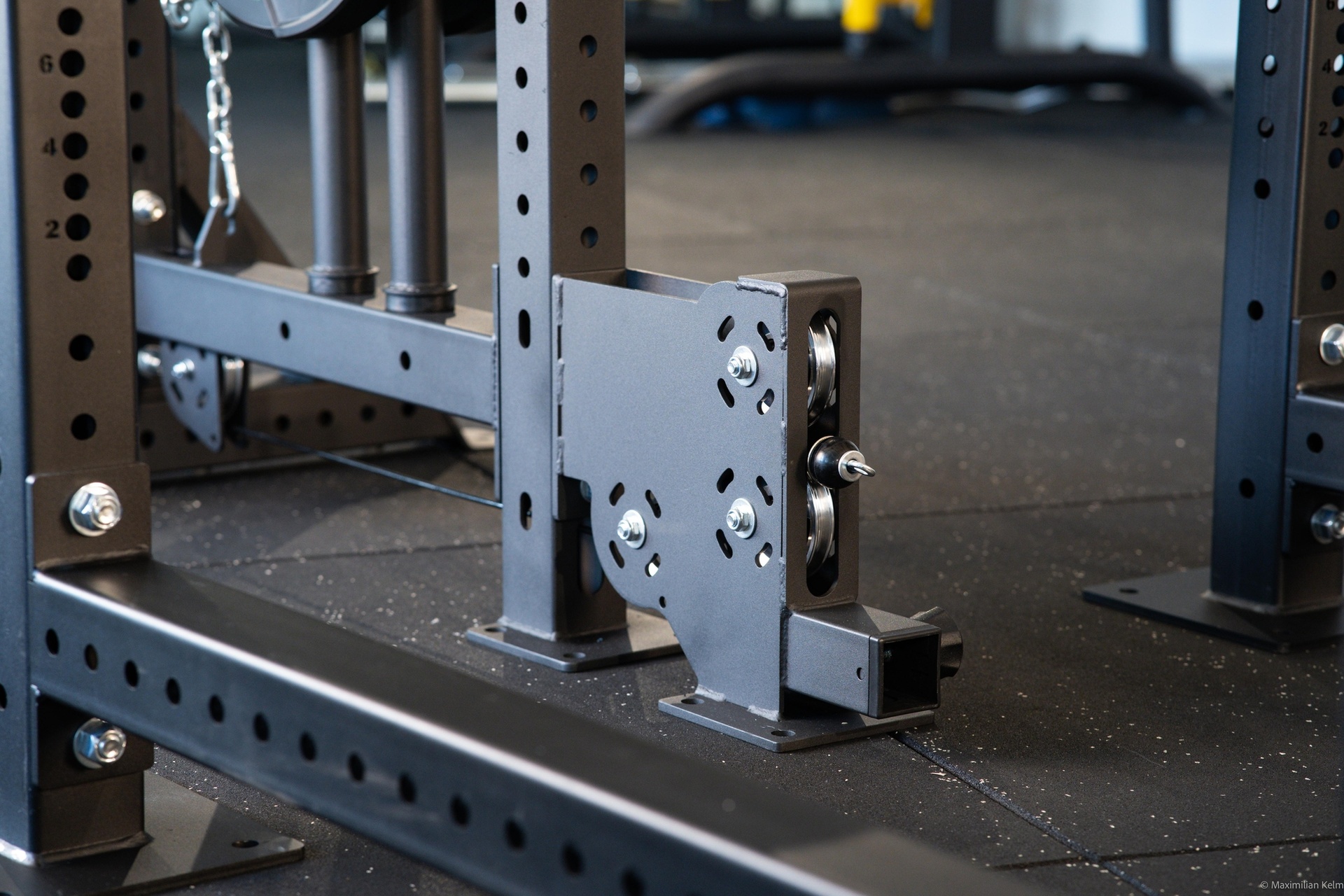

The cable pulley system features oversized, ball-bearing aluminum pulleys. Their large diameter provides a generous bending radius, helping the nylon-coated steel cable maintain its shape. The weight carriage travels along two heavy-duty, chrome-plated guide rods that absorb lateral forces and keep it securely on track.

Technical Specifications

Overall Dimensions and Frame
Depth 148 cm
Depth with Rack 233 cm with standard mounting configuration
Width 88 cm
Height 220 cm
Net Weight 104 kg
Steel Profile 75 x 75 x 3 mm
Surface Finish Powder coating
Color Black
Cable Pulley System
Pulley Configuration Upper and lower pulleys
Pulley Ratio 1:1
Cable Pulleys Oversized aluminum pulleys, ball-bearing mounted
Guide System Two heavy-duty chrome-plated guide rods, bushing bearings
Steel Cable Heavy-duty, nylon coated
Adjustments
Seat Minimum seat height 50 cm, height adjustable. The seat mounts from the side using a J-cup-style system, allowing quick removal for Rows and Biceps Curls.
Knee Pads 5 adjustment positions
Footplate 5 adjustment positions
Seat, Knee Pads and Footplate Removable to allow unrestricted use of the rack area
Rack Attachment Multiple mounting positions, compatible with rack heights of 210 cm and 240 cm
Padding
Seat 37 x 25 x 6 cm, removable
Knee Pads 19 cm each, Ø 10 cm
Leg Roller Pad 21 cm, Ø 12 cm
Footplate 43 x 24 cm, non-slip
Weight Plate Loading
Plate Compatibility Ø 50 mm
Loading Length 25 cm
Max. Weight Load 400 kg

Scope of Delivery

The station is supplied with a seat pad, knee pads, leg roller pad and footplate. The Lat Pulldown Bar, Rowing Handle and Belt Squat Belt are available separately.

Optional Accessories

Lat Pulldown Bars, Rowing Handles, Triceps Ropes and Belts can be found in our Cable Pulley Accessories category.

At a Glance

  • Lat Pulldowns, Rows and Belt Squats on one plate-loaded station for 50 mm weight plates
  • Compatible with PREMIUM BISON series racks in 210 cm and 240 cm heights, or freestanding use
  • Removable seat, knee pads and footplate for unrestricted use of the rack area
  • Oversized ball-bearing aluminum pulleys and two heavy-duty chrome-plated guide rods
  • 75 x 75 x 3 mm steel frame, 104 kg net weight, maximum weight load of 400 kg
