Premium Functional Wall Tower SQMIZE® FPT400, Height 209 CM

Top Quality Cable Machine. Smooth Workout. Expandable With 90 KG Weight Stack!

The Premium Functional Wall Tower SQMIZE® FPT400 presents itself in the very best quality. It meets the highest demands on material, construction and workout. This dual wall cable machine offers a full training spectrum with 22 height adjustments. The compact design and a height of 209 cm allows for installation in a variety of rooms. The 60 x 60 x 2mm steel profile illustrates the professional construction. A sophisticated cable pulley system with extreme load capacity and a bush bearing weight carriage ensure a smooth workout at commercial level. Mounting is twofold with lower and upper attachment to the wall. The FPT400 can also be mounted on the racks of the Premium Bison series. If you choose the 90 kg Weightstack FPT400-WS, you can additionally load the two plate holders of the carriage with 30 or 50 mm weight plates and thus train up to the weight limit of 180 kg.

Functionality of the Functional Wall Tower SQMIZE® FPT400

• 22-fold height adjustable
• Laser cut numbering
• Adjustment height from 22 - 180 cm height, hole spacing 7,5 cm
• Weight carriage with plate holders of 30 mm, including adapter 50 mm
• Ratio 1:2 when using one handle
• Ratio 1:1 when using both handles
• Super compact design ideal for small spaces
• Overall height of 209 cm ideal for most rooms
• Unilateral and bilateral push and pull exercises
• Unilateral and bilateral flexion and lifting exercises.

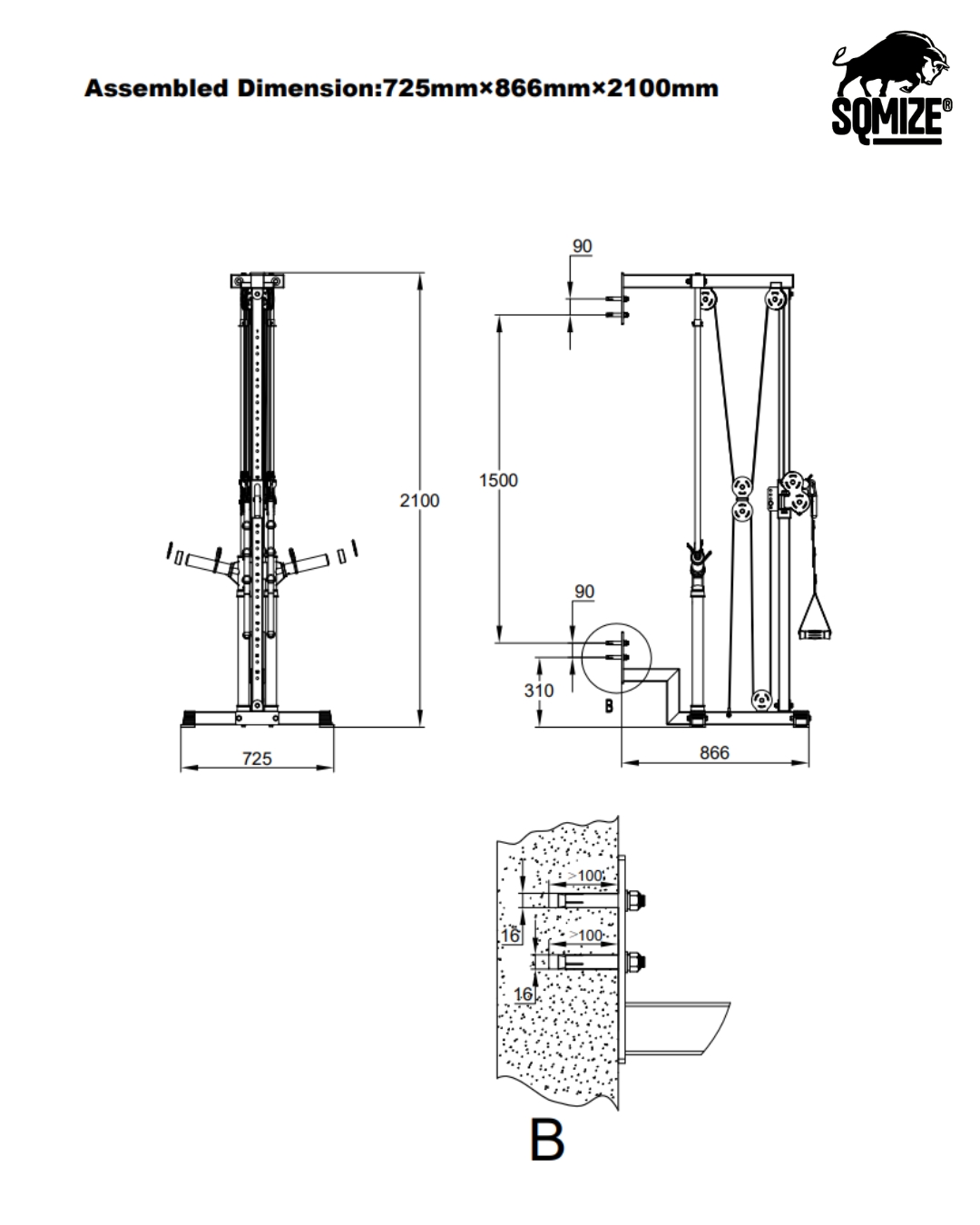

Technical Data of the Functional Wall Tower SQMIZE® FPT400

• Depth 90 cm
• Width 73 cm
• Height 209 cm
• Weight plates with diameter up to 450 mm fit
• Plate holders 30 mm, with enclosed Olympic adapter 50 mm
• Loadable length of the plate holders 19 cm
• Weight 44 kg
• Steel profile 60 x 60 mm, wall thickness 2 mm
• Ball bearing aluminum pulleys in robust quality
• Steel cable, coated with nylon
• Weight load up to 300 kg
• Frame powder-coated black
• Top and bottom screwable to the wall (see note below)
• Compatible with Premium Bison Series Racks
• Optional extension with Weightstack 90 kg FPT400-WS possible.

Accessories of the Functional Wall Tower SQMIZE® FPT400

• 2 handles with length 13 cm, Ø 30 - 35 mm

Other Accessories, Not Included

• Cable Attachments
• 90 kg Weight Stack FPT400-WS, 18 x 5 kg weight plates.

Notes

Dowels and screws are not included in the scope of delivery. Depending on the condition of the wall, care has to be taken for an optimal fixation of the weight machine.

For optimal gliding of the weight carriage we recommend to apply some silicone spray on both guide rods before start-up. Also ideally suited and available in the store: Universal Oil Spray Fuchs.
