Lat Pull-down Station SQMIZE® POWER PACK LAT944, height 192 cm

Lat Pulldown Station SQMIZE® POWER PACK LAT944, Height 192 cm

Lat Pulldowns and Seated Rows on one station, without any modifications between sets: The SQMIZE® POWER PACK LAT944 combines both pulling directions using a single cable system and weight carriage. Measuring 123 cm in length, 64 cm in width and 192 cm in height, it occupies a footprint of less than 0.8 m², making it easy to accommodate in most home gyms without rearranging your equipment.

Two Pulling Directions, One Machine

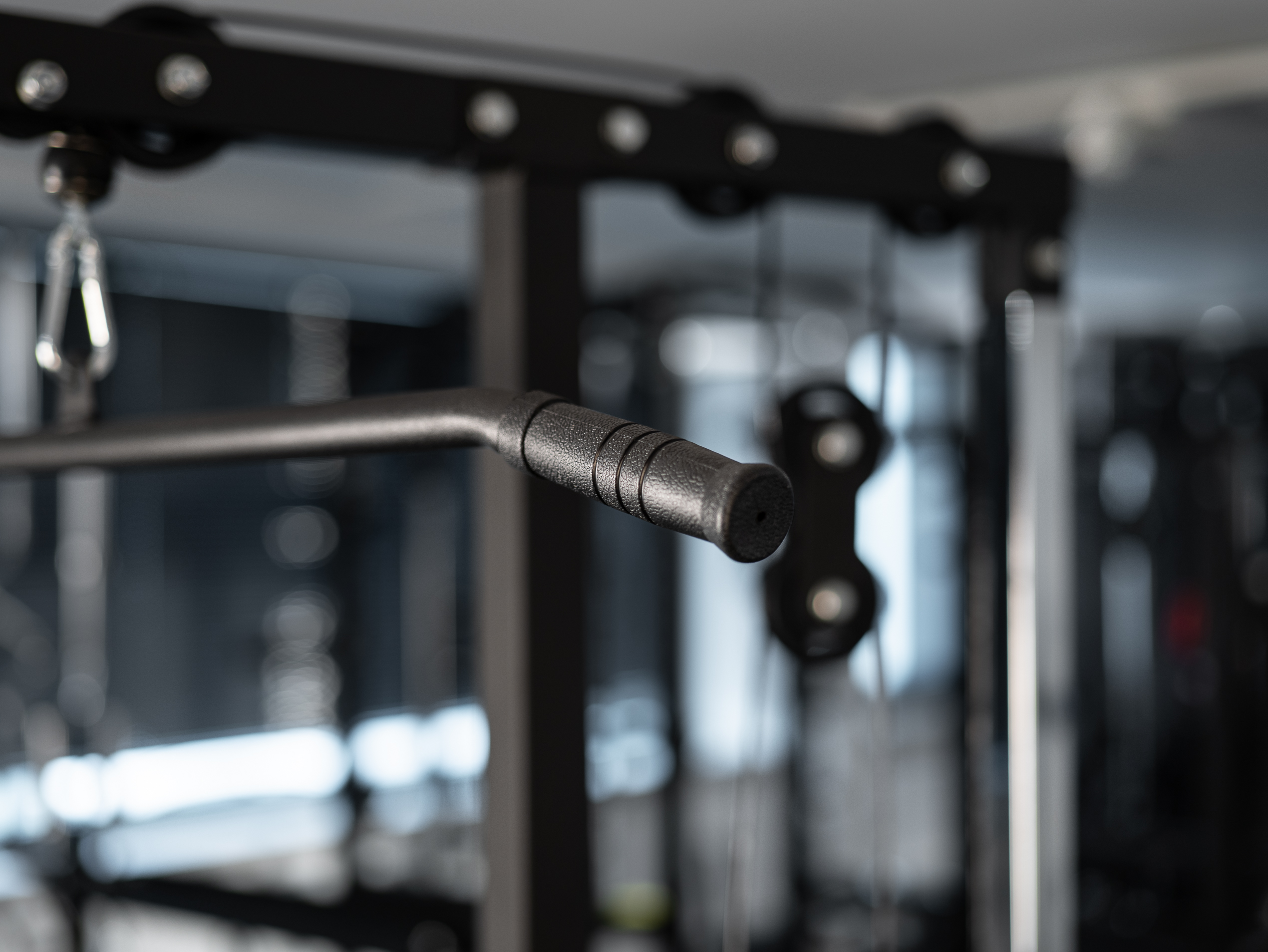

The upper pulley is designed for Lat Pulldowns. The downward pulling movement works the latissimus dorsi throughout its length, engages the rhomboids between the shoulder blades and recruits the biceps for elbow flexion. The included Lat Pulldown Bar measures 92 cm in length with a diameter of 29 mm. From a narrow underhand grip to a wide overhand grip, you can freely choose your grip width and shift the training emphasis between back width and back thickness.

The lower pulley is available in the same setup. Seated Cable Rows target the middle back, rear deltoids and trapezius muscles. A 46 cm Rowing Bar with rubberized grip sections is included for this purpose. Cable Curls using the lower pulley, Triceps Pushdowns with the Lat Pulldown Bar and Face Pulls can also be performed without additional accessories, allowing the station to cover an entire pull-day workout.

Weight Carriage and Guide System

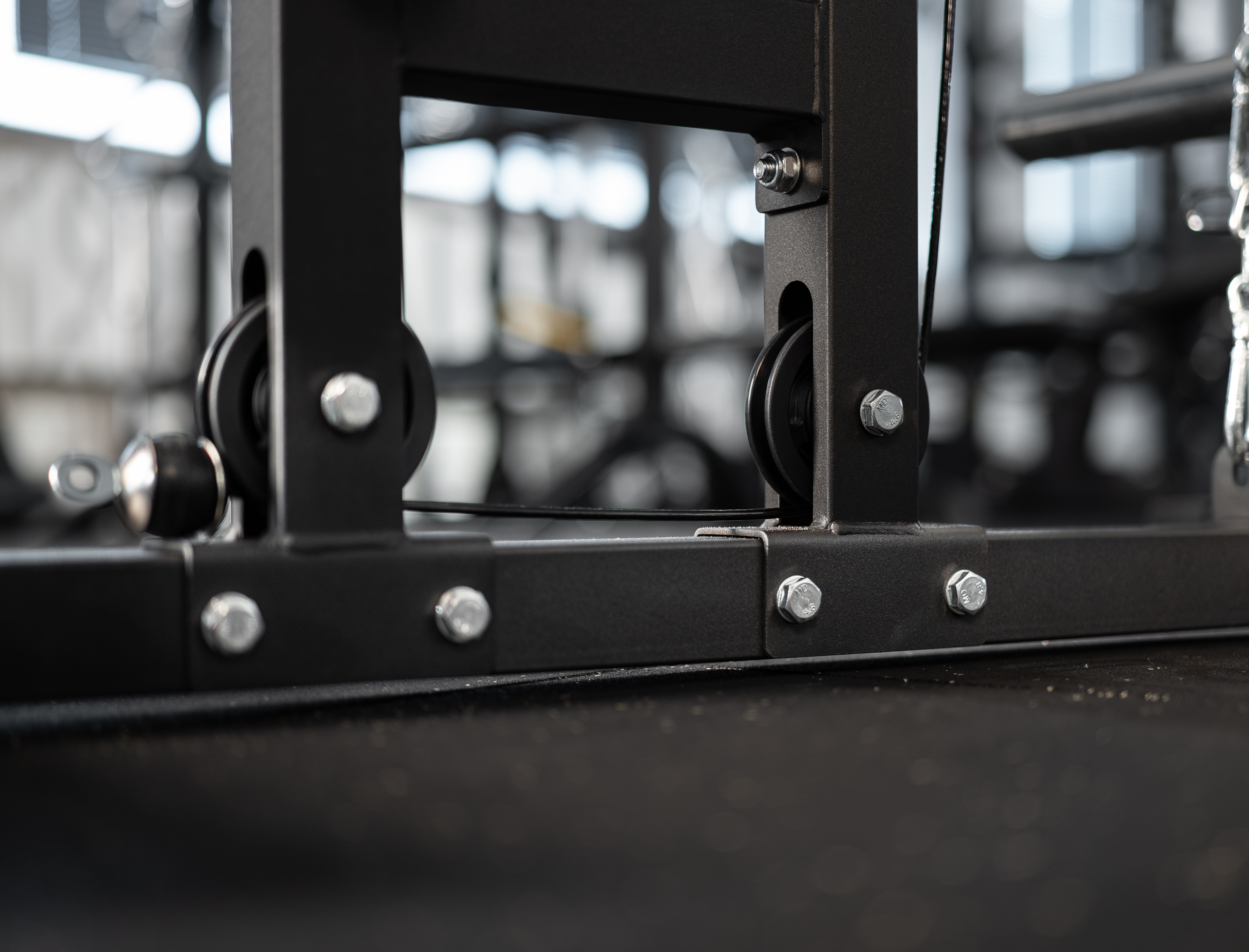

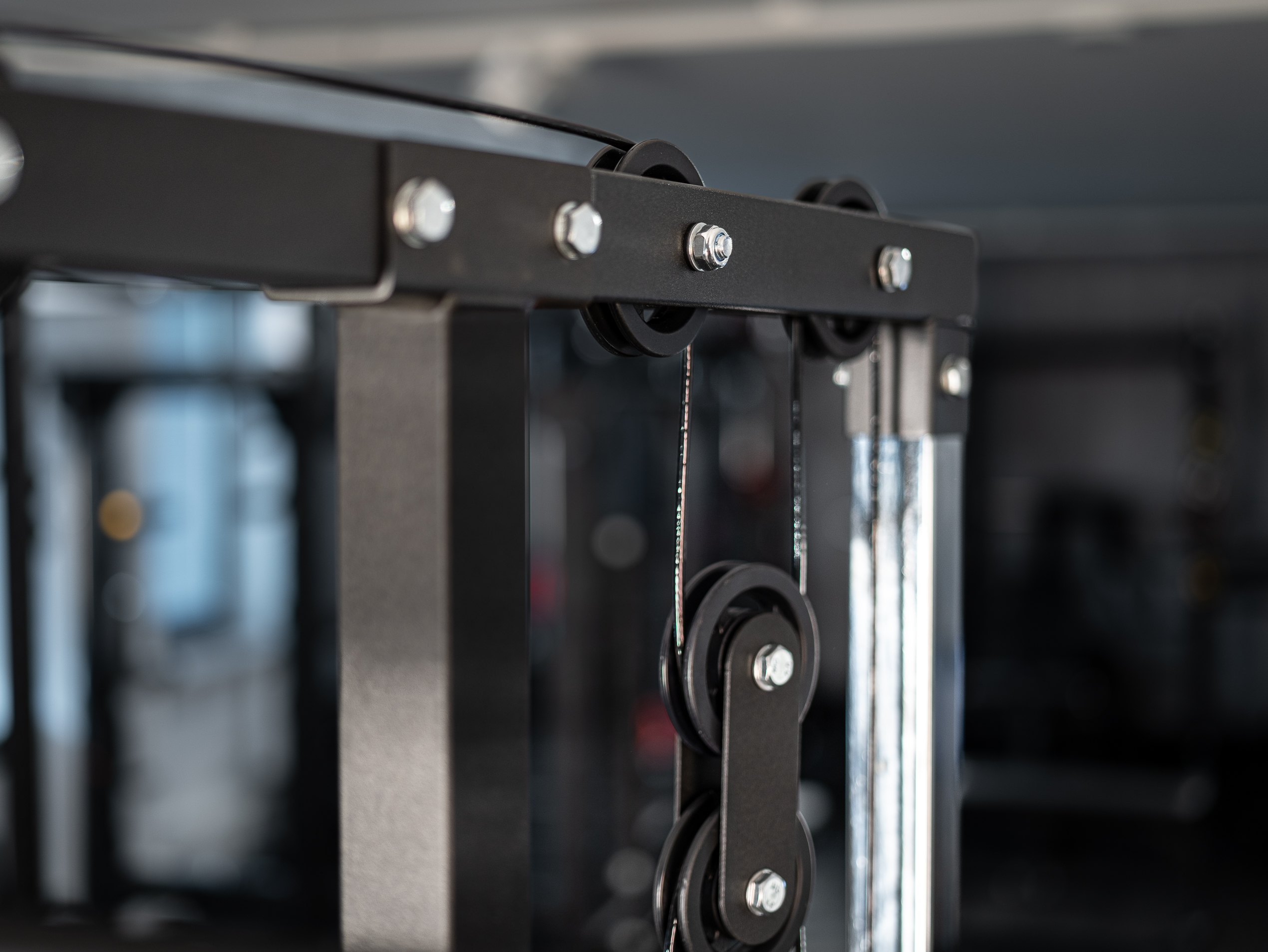

The weight carriage moves along a chrome-plated square guide rail and is equipped with bushing bearings. The pulley ratio is 1:1, meaning the travel distance of the bar corresponds to that of the weight carriage, while the resistance at the bar corresponds to the loaded weight plates. What you load is what you pull, making it easy to track your strength progression over time.

The weight carriage accommodates plates with 30 mm and 50 mm center holes. Adapters for 50 mm plates and spring collars are included. With a usable loading length of 24 cm, the carriage supports up to 180 kg. The highly flexible steel cable features a PU coating and a cable load capacity of 900 kg, providing a substantial safety margin above the maximum weight carried by the carriage.

Seat, Roller Pads and Adjustments

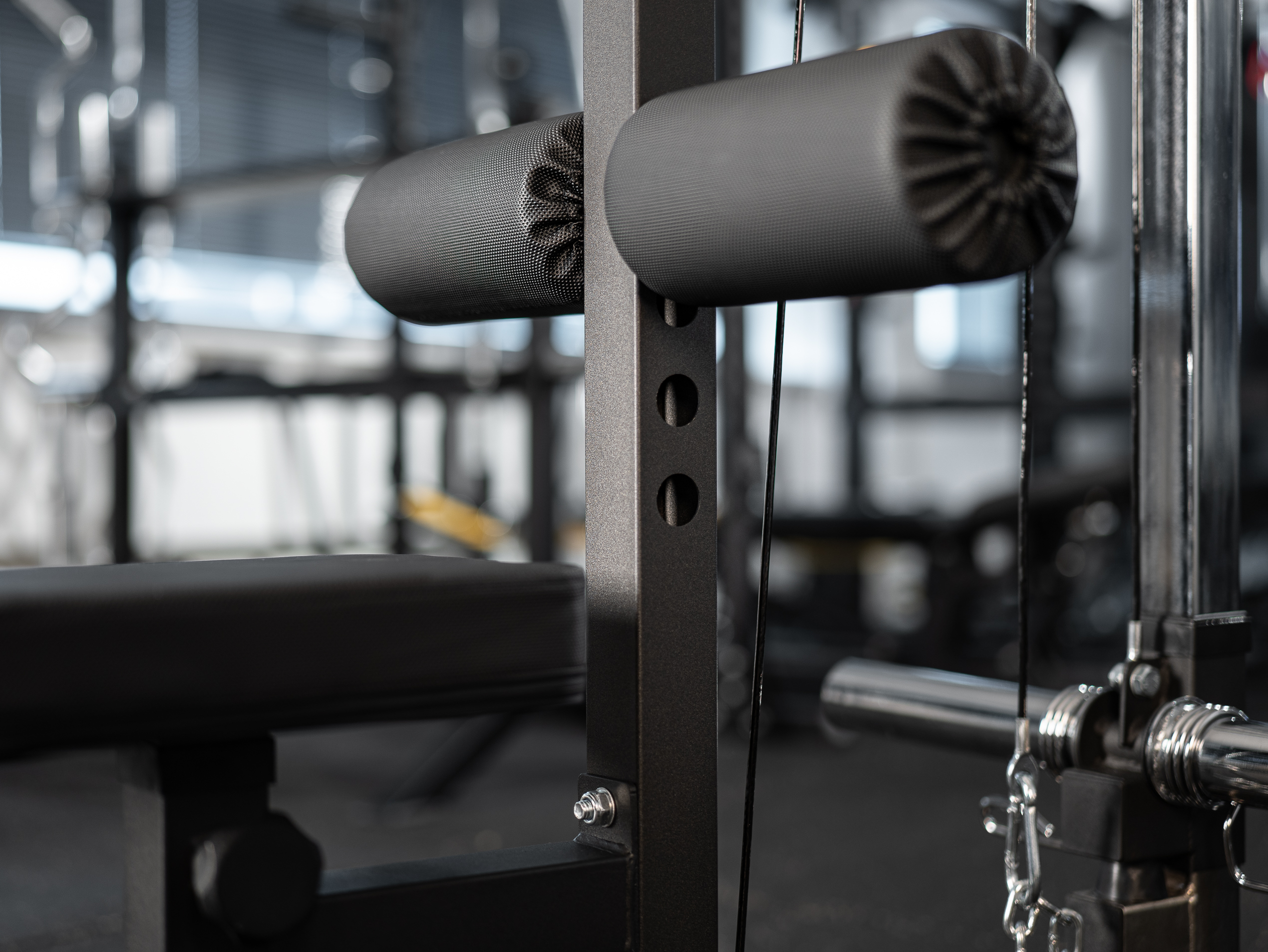

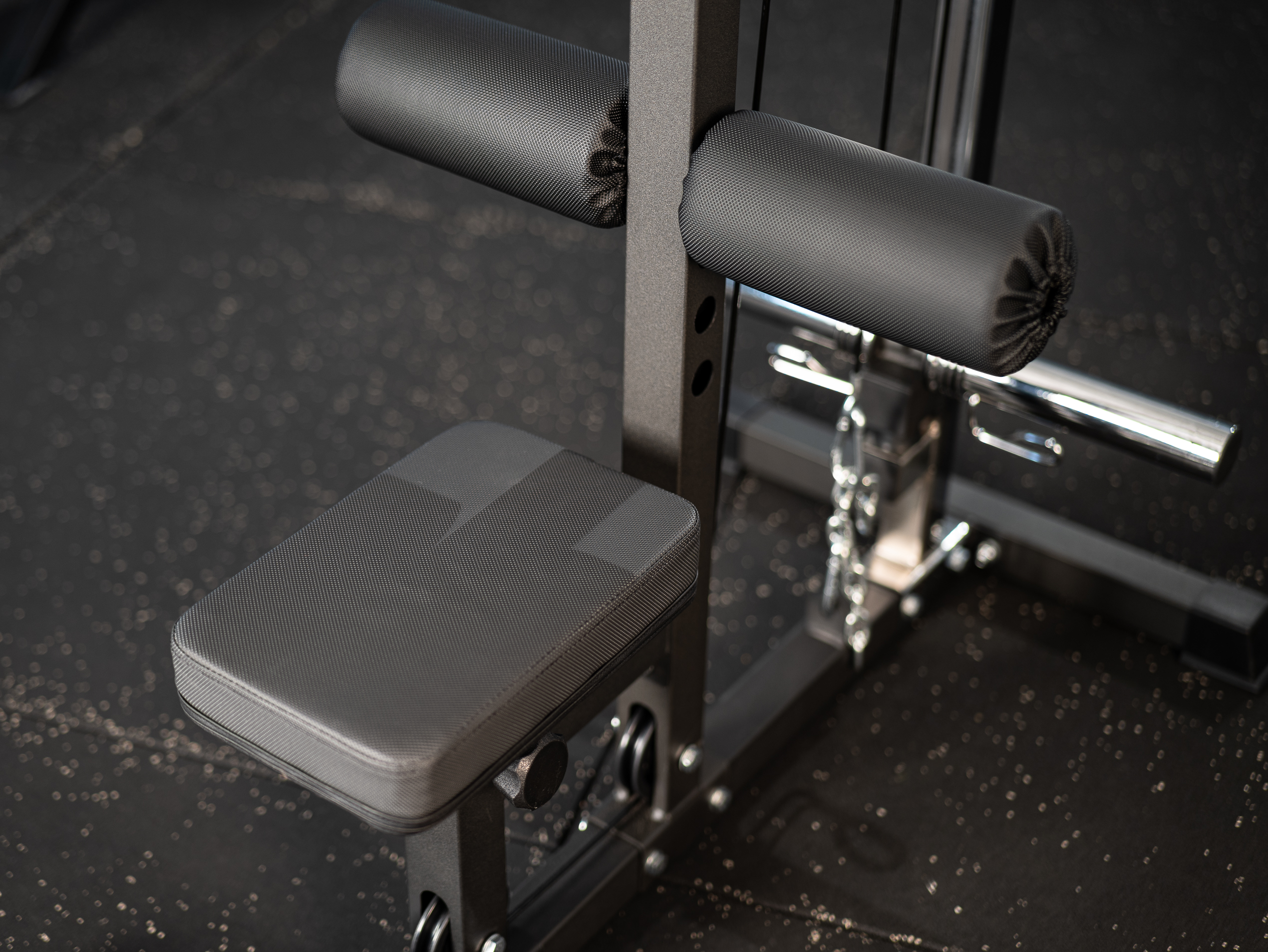

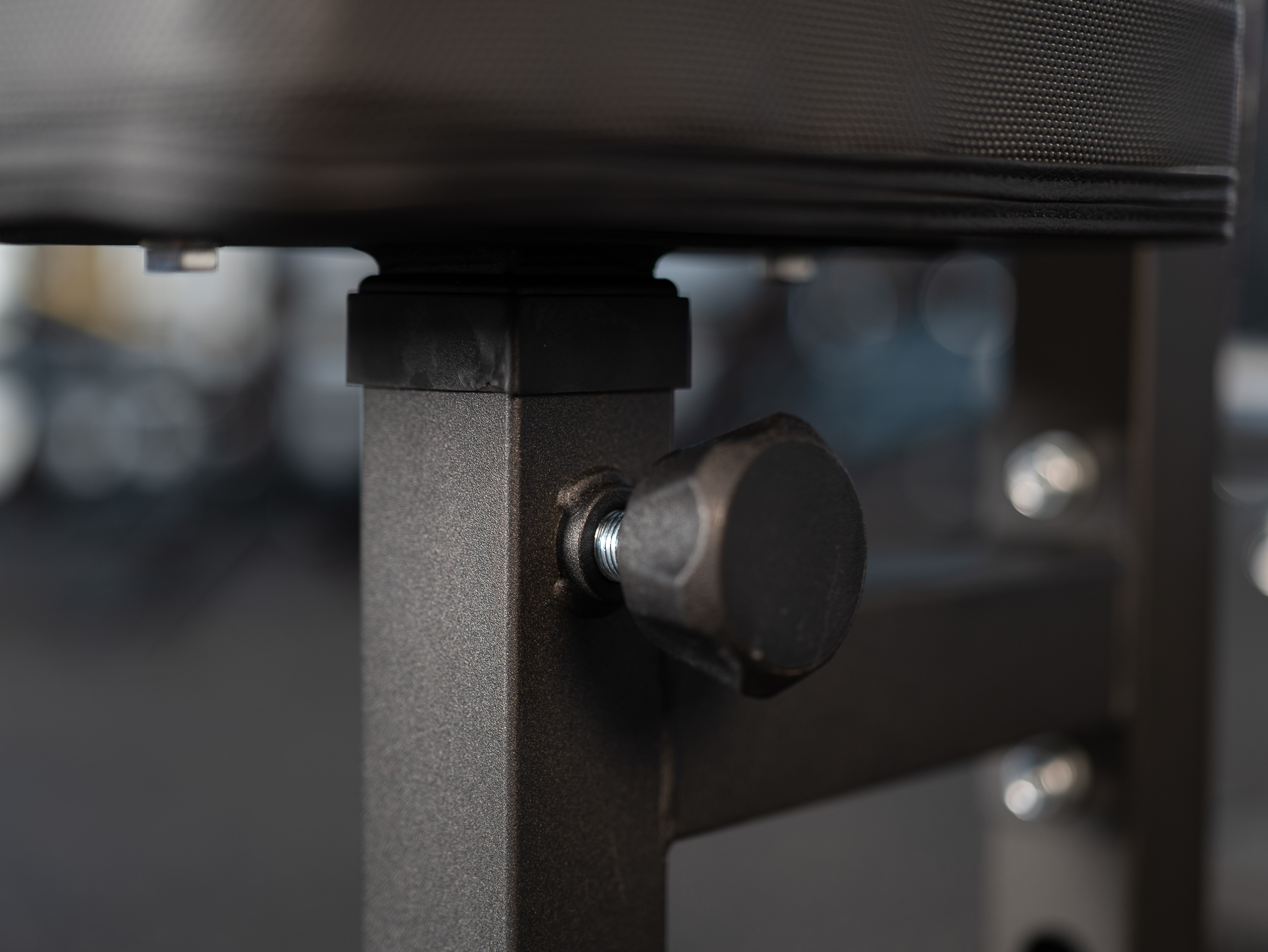

The seat locks into four height positions between 43 and 52.5 cm using a locking pin. The roller pads offer two height adjustment positions and secure the thighs, keeping the upper body in place so that the pulling force is directed into the back muscles. Both adjustments feature a convenient tool-free quick-adjustment system. The seat and roller pads are covered with non-slip mesh fabric.

192 cm Overall Height

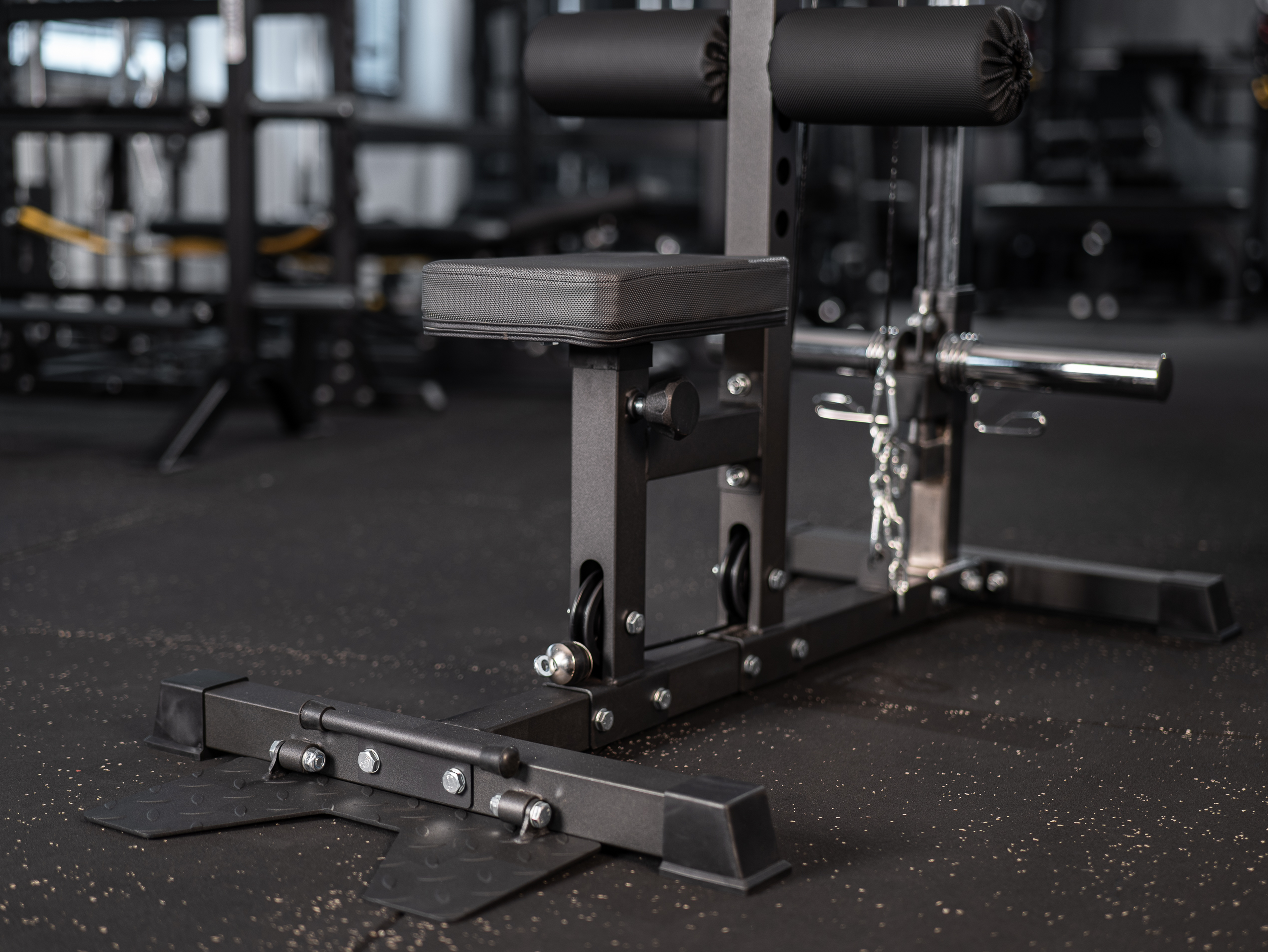

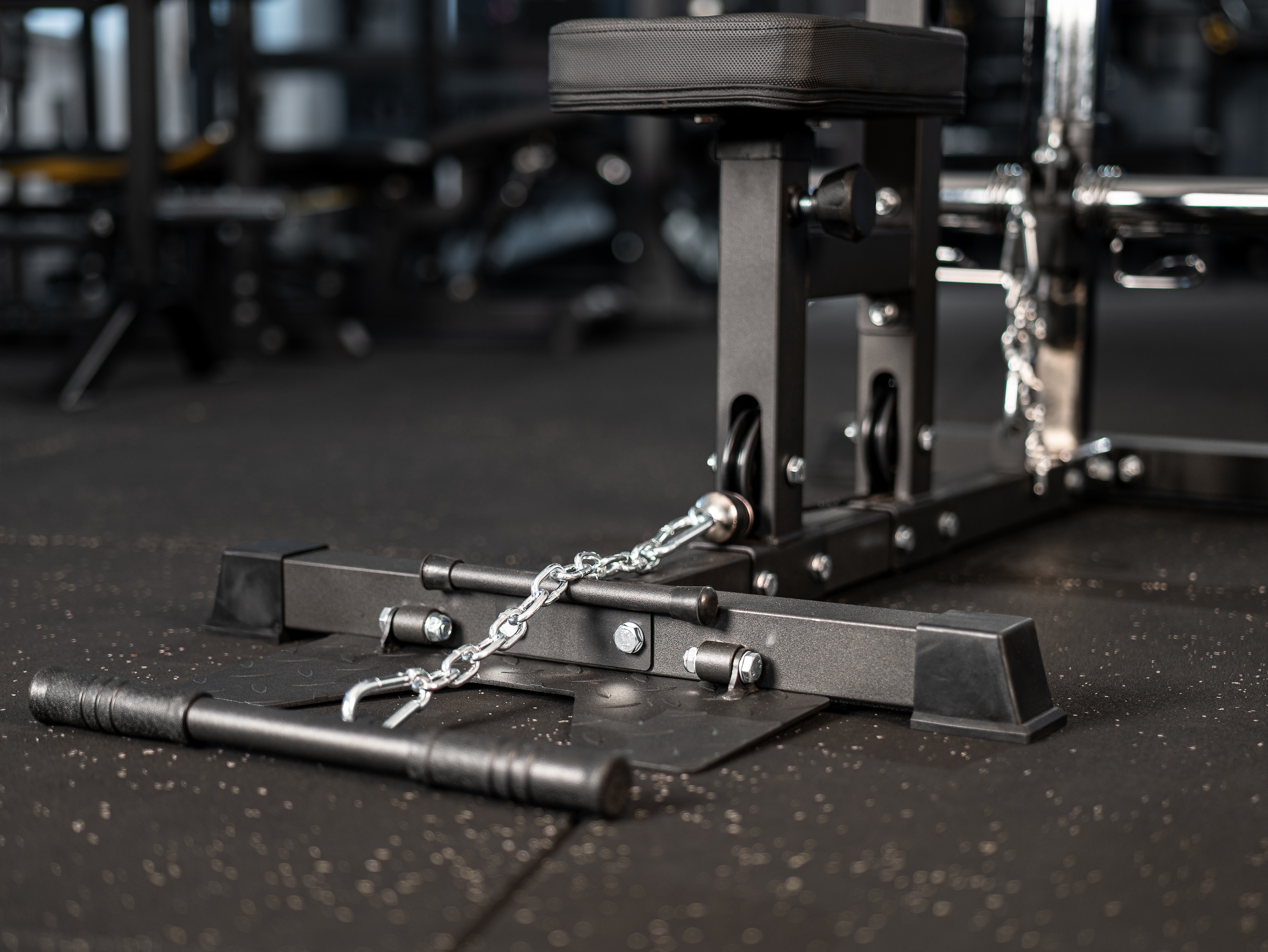

With a frame height of 192 cm, the station fits under basement ceilings, into attic rooms and spaces with suspended ceilings. In rooms with a ceiling height of 2.50 m, sufficient clearance remains above the machine for assembly. The heavy-duty diamond-patterned steel footplate helps keep the station firmly in place during pulling exercises, while the 50 x 50 mm steel frame with a wall thickness of 2 mm absorbs the training forces. Weighing just 32 kg, the station can easily be positioned by two people and relocated whenever necessary.

Technical Specifications

Overall Dimensions and Frame
Length 123 cm
Width 64 cm
Height 192 cm
Weight 32 kg
Frame Profile 50 x 50 mm
Steel Wall Thickness 2 mm
Frame Construction Welded on all four sides
Base Plate Diamond-patterned steel plate
Feet Rubberized
Surface Finish Powder coating
Color Black
Cable Pulley System
Pulley Configuration Upper and lower pulleys, no modifications required when using the rowing station
Pulley Ratio 1:1
Guide Rail Square profile, chrome plated
Weight Carriage Bearings Bushing bearings
Steel Cable Highly flexible, PU coated
Cable Load Capacity 900 kg
Adjustments
Seat 4 height adjustment positions, 43 – 52.5 cm
Roller Pads 2 height adjustment positions
Adjustment System Locking pin, convenient quick adjustment
Padding
Seat 31 x 21 x 6 cm
Roller Pads Length 24 cm, Ø 10.5 cm
Upholstery Mesh, non-slip
Weight Plate Loading
Plate Compatibility Ø 30 mm and Ø 50 mm
Loading Length 24 cm
Max. Weight Load 180 kg
Adapters For 50 mm weight plates, included
Spring Collars Included
Included Accessories
Lat Pulldown Bar 92 cm, Ø 29 mm, rubberized grip area
Rowing Bar 46 cm, Ø 29 mm, rubberized grip area
Weight Plates Not included

Optional Accessories

Handles, ropes and bars for the upper and lower pulleys can be found in our Cable Pulley Accessories category. These allow you to expand the LAT944 with single-arm pulling exercises, triceps ropes and narrow rowing handles.

At a Glance

  • Upper and lower pulleys without modifications between sets
  • Weight carriage with bushing bearings on a chrome-plated square guide rail, 1:1 pulley ratio
  • Compatible with Ø 30 mm and Ø 50 mm weight plates, up to 180 kg maximum weight load, adapters and spring collars included
  • Seat with 4 height adjustment positions from 43 to 52.5 cm, roller pads with 2 height adjustment positions
  • 192 cm overall height with a footprint of less than 0.8 m², 50 x 50 mm steel frame with 2 mm wall thickness
