Professional Lat Pull-Down Station SQMIZE® LMP780, height 220 cm

Professional Lat Pulldown Station SQMIZE® POWER PACK LMP780, Height 220 cm

220 cm frame height, 38 cm seat height and four grip attachments included: The SQMIZE® POWER PACK LMP780 is the cable pulley station for anyone who makes Lat Pulldowns the centerpiece of their back training. With a length of 130 cm and a width of 85 cm, it provides a stable footprint that remains secure even under maximum load.

Four Grip Attachments, No Tools Required + Triceps Rope

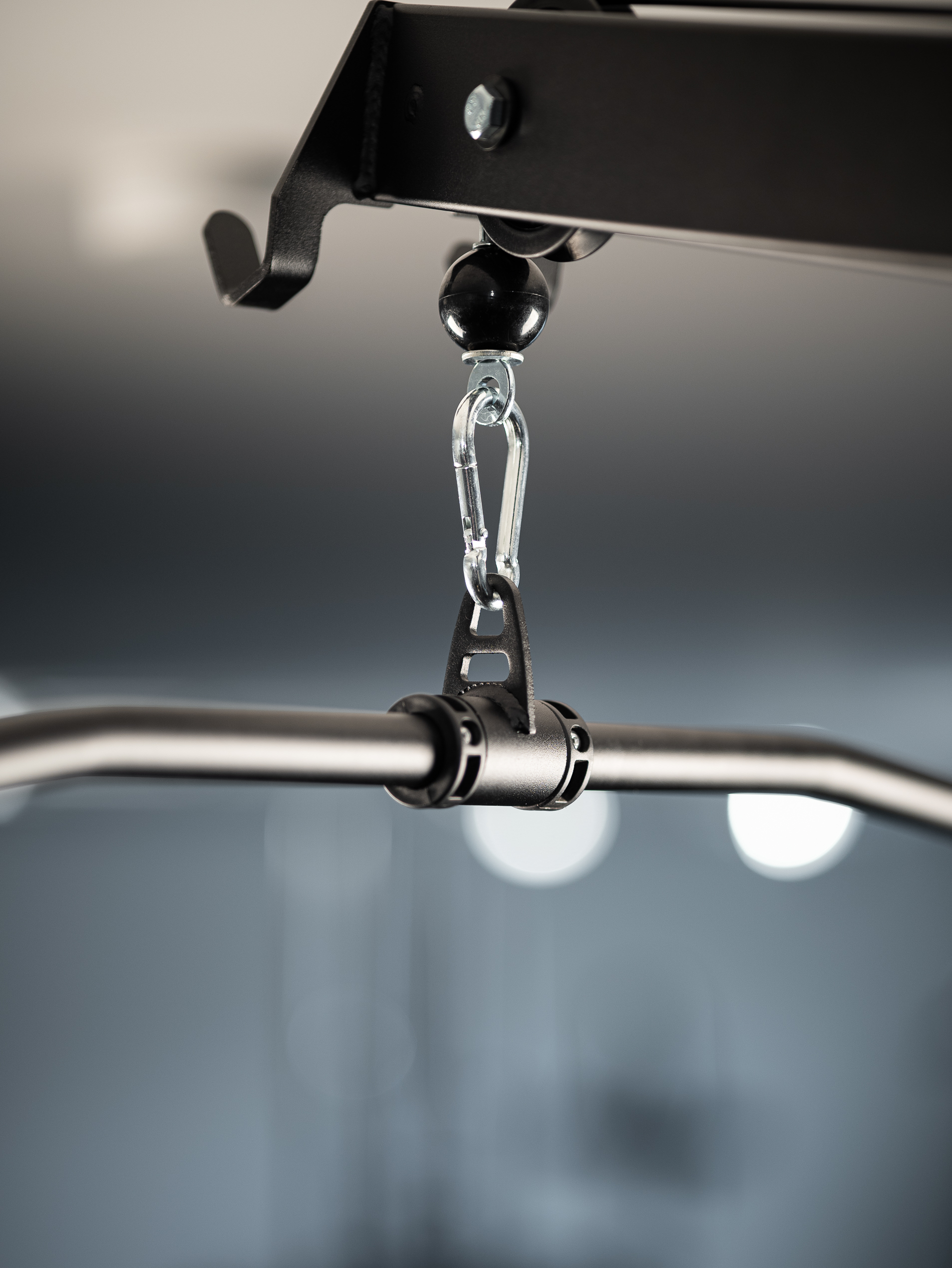

The Lat Pulldown Bar measures 104 cm in length, with a grip width of 90 cm and a diameter of 31 mm. The grip area is rubberized. Its swivel joint follows the natural rotation of your forearms when pulling with a narrow underhand grip. The Curl Bar offers the same swivel technology in a compact 46 cm length with a diameter of 29 mm, directing the pulling force towards the biceps.

Also included are a Triangle Rowing Handle with a grip width of 13 cm for close-grip rows using the lower pulley and an Ankle Strap for cable abductions, adductions and leg raises. Switching attachments takes just seconds, as all handles connect to the same carabiner. Lat Pulldowns, Rows, Curls, Pullovers and Face Pulls can therefore be performed in a continuous circuit without leaving the station. A Triceps Rope is also included.

38 cm Seat Height for a Full Range of Motion

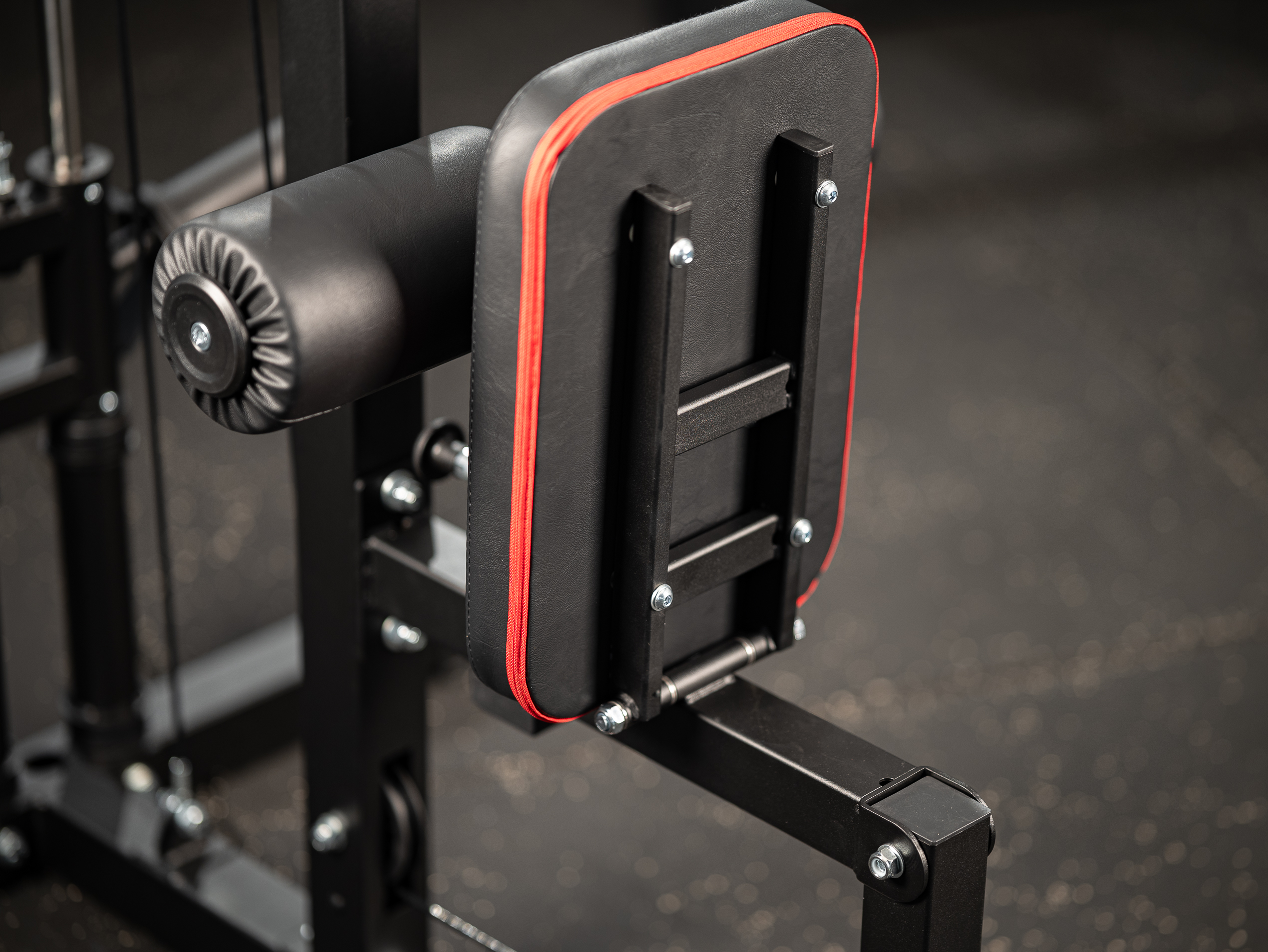

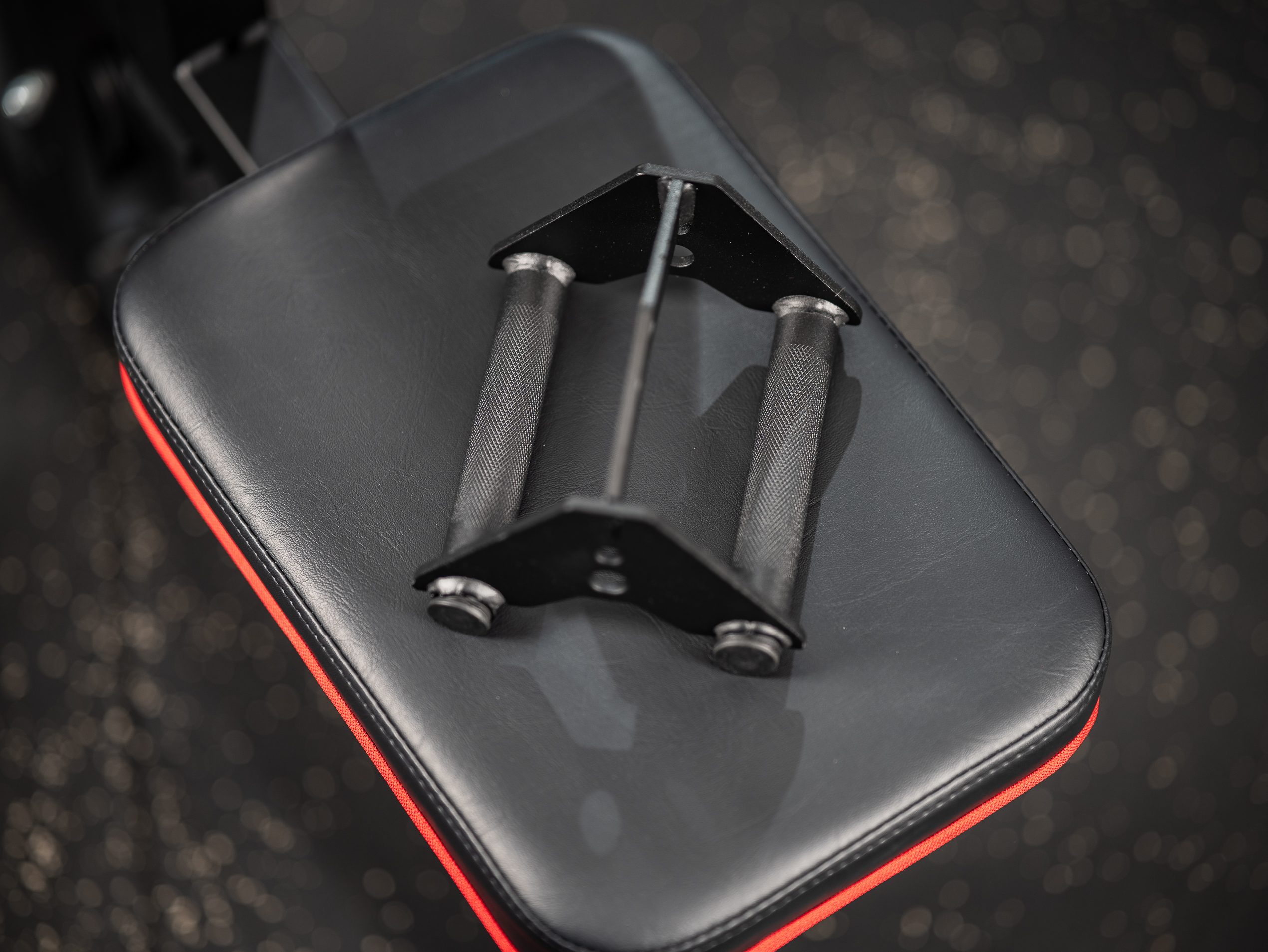

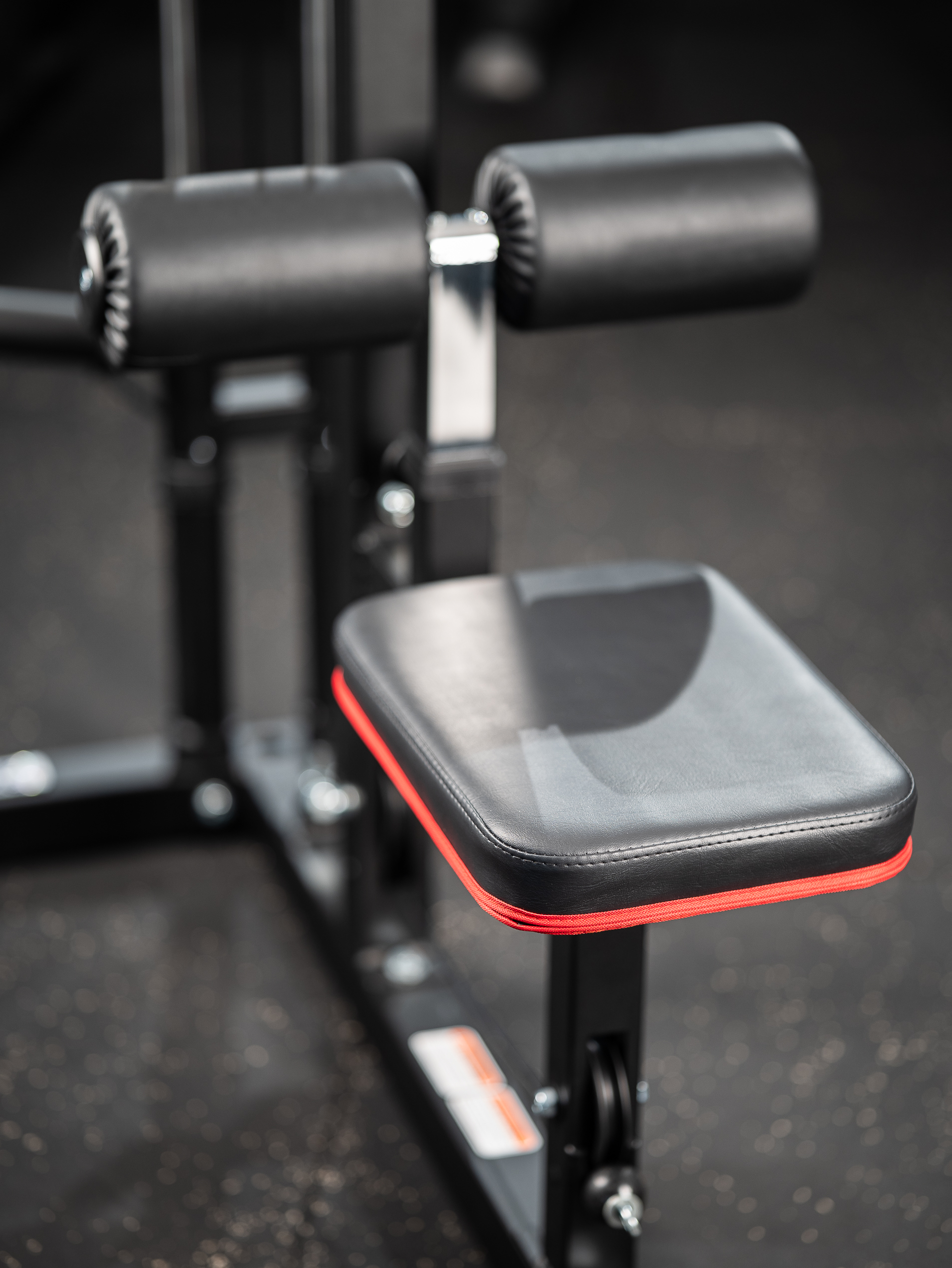

The seat is positioned at a height of 38 cm. This provides sufficient space during Lat Pulldowns to fully extend your arms overhead and engage the latissimus dorsi in its stretched position, even for users taller than 1.80 m. The seat pad measures 39 x 27 cm with a padding thickness of 5.5 cm, offering a stable support surface even during heavy sets.

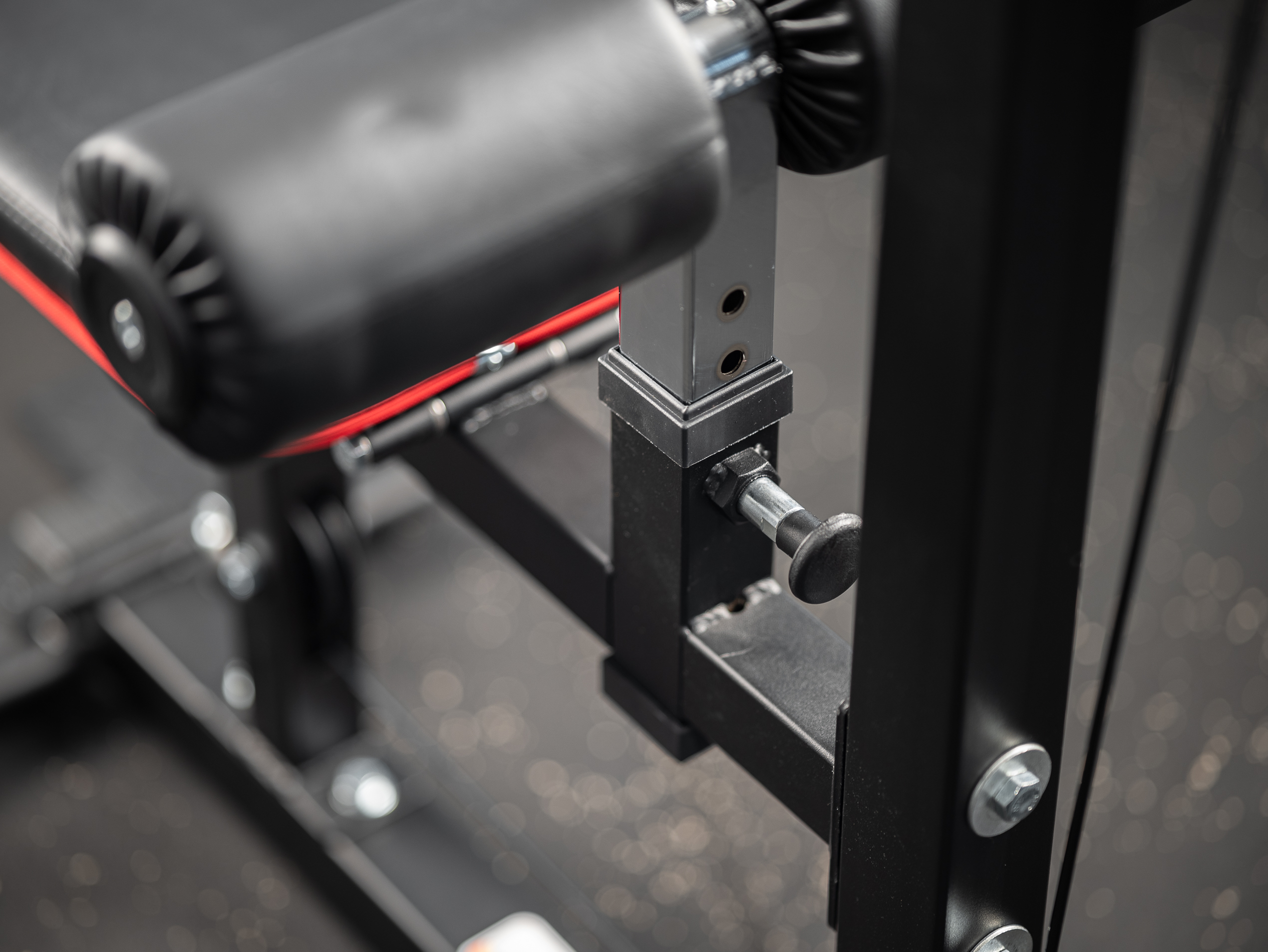

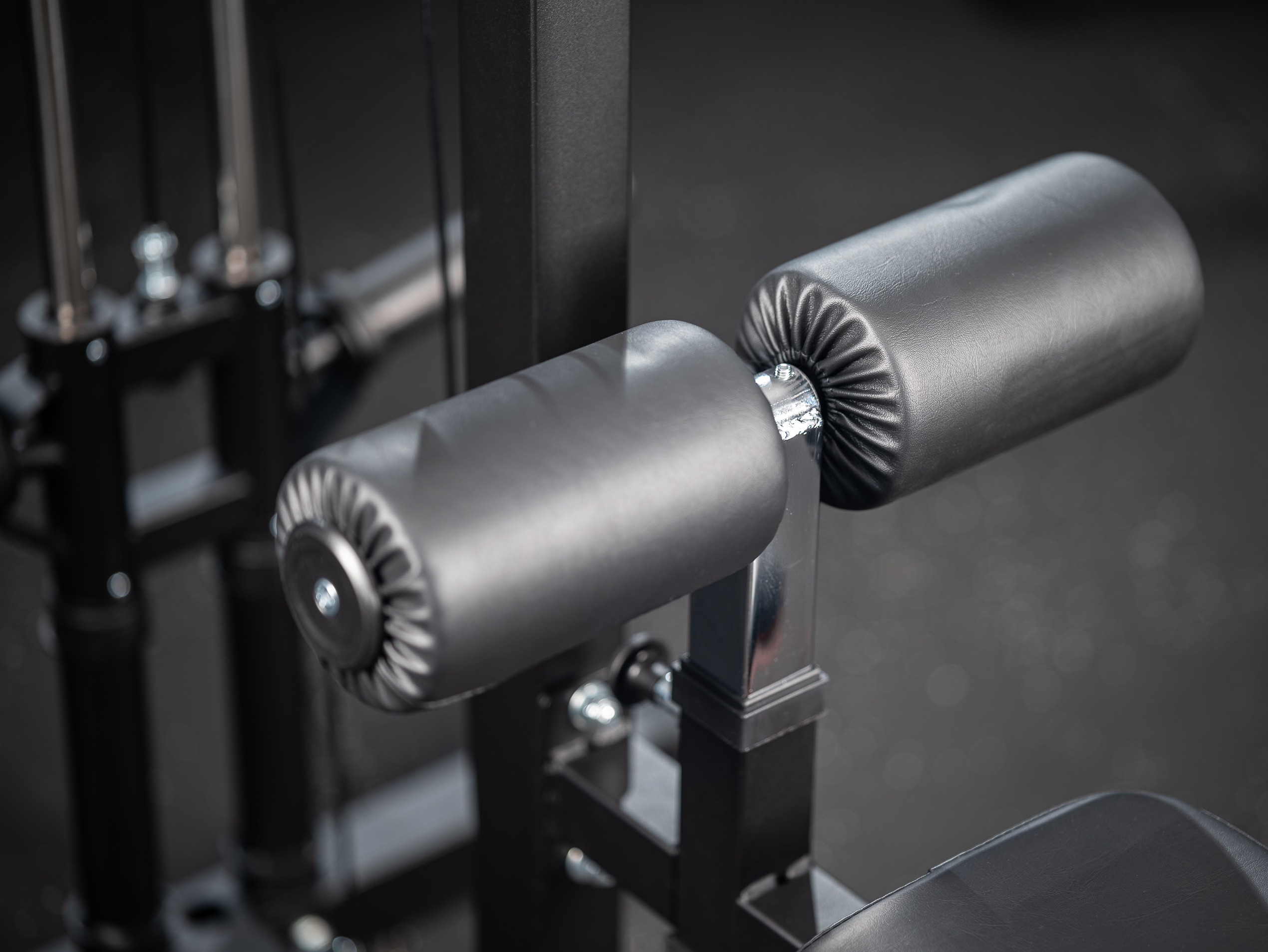

The thigh roller pads offer six height adjustment positions. This allows you to find the ideal setting in which your thighs are held securely beneath the pads and your upper body remains in position throughout the pulling movement. The rollers measure 22 cm in length with a diameter of 11.5 cm.

Dual Guide Rods and Cable Pulley System

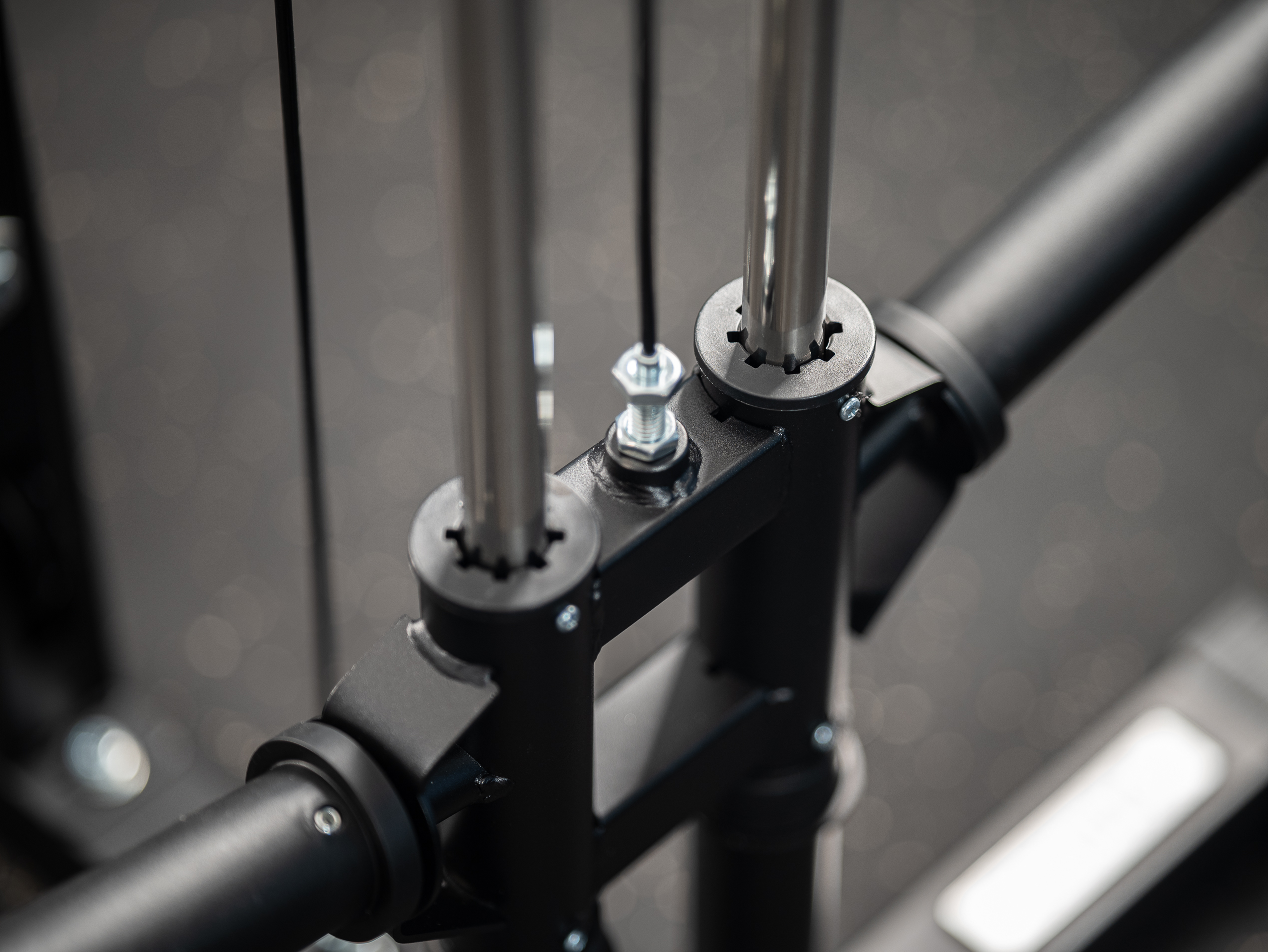

The weight carriage moves along two heavy-duty, chrome-plated guide rods. Bushing bearings ensure smooth, fluid movement. The dual-guide system absorbs lateral forces and keeps the carriage on track, even when the pulling force is not perfectly vertical. The result is consistently smooth movement throughout the entire range of motion.

The cable pulley system uses a highly flexible, PU-coated steel cable with a cable load capacity of 900 kg. The pulley ratio is 1:1, meaning the resistance at the bar corresponds to the loaded weight plates. Both upper and lower pulleys are available simultaneously, eliminating the need to modify the station between exercises. The weight carriage accommodates plates with 30 mm and 50 mm center holes, supporting a maximum weight load of 180 kg. Adapters and spring collars for 50 mm plates are included.

60 x 60 mm Steel Frame

The frame is constructed from 60 x 60 mm steel profiles, welded on all four sides. The heavy-duty diamond-patterned steel base plate provides additional stability, while rubberized feet protect the training room floor. Weighing 41 kg, the station remains securely in place during use and can be repositioned by two people when necessary. The black powder-coated finish withstands regular contact with weight plates and carabiners.

Technical Specifications

Overall Dimensions and Frame
Length 130 cm
Width 85 cm
Height 220 cm
Weight 41 kg
Frame Profile 60 x 60 mm
Frame Construction Welded on all four sides
Base Plate Diamond-patterned steel plate
Feet Rubberized
Surface Finish Powder coating
Color Black

Cable Pulley System
Pulley Configuration Upper and lower pulleys, no modifications required when using the rowing station
Pulley Ratio 1:1
Weight Carriage Guide System Two heavy-duty chrome-plated guide rods, bushing bearings
Steel Cable Highly flexible, PU coated
Cable Load Capacity 900 kg

Adjustments
Thigh Roller Pads 6 height adjustment positions

Padding
Seat 39 x 27 cm
Seat Padding Thickness 5.5 cm
Seat Height 38 cm
Thigh Roller Pads Length 22 cm, Ø 11.5 cm

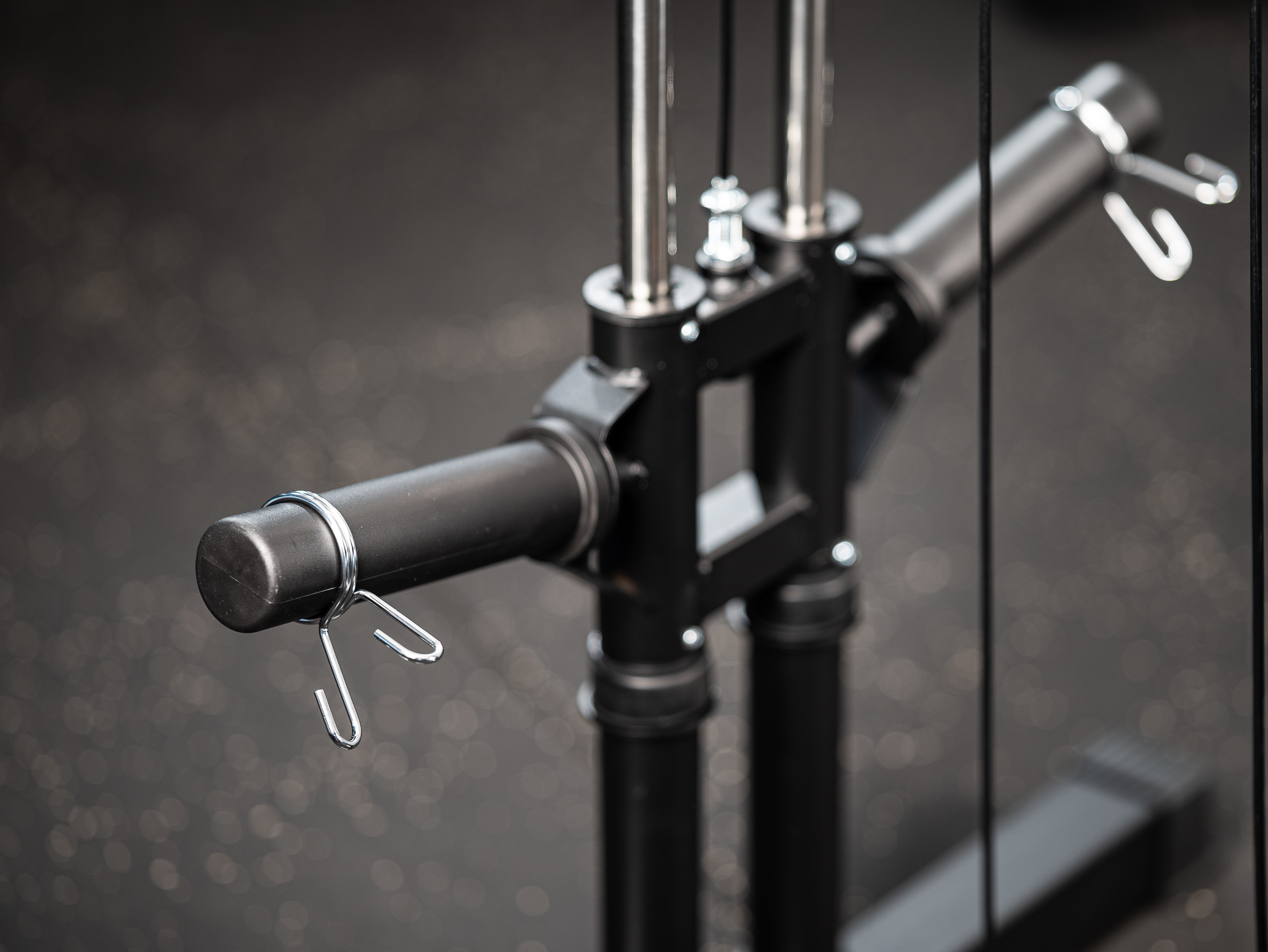

Weight Plate Loading
Plate Compatibility Ø 30 mm and Ø 50 mm
Loading Length 19 cm and 19.5 cm
Max. Weight Load 180 kg
Adapters For 50 mm weight plates, included
Spring Collars 50 mm, included

Included Accessories
Lat Pulldown Bar with Swivel Joint 104 cm, grip width 90 cm, Ø 31 mm, rubberized grip area
Curl Bar with Swivel Joint 46 cm, Ø 29 mm, rubberized grip area
Triangle Rowing Handle Grip width 13 cm, Ø 25 mm
Ankle Strap 1 piece

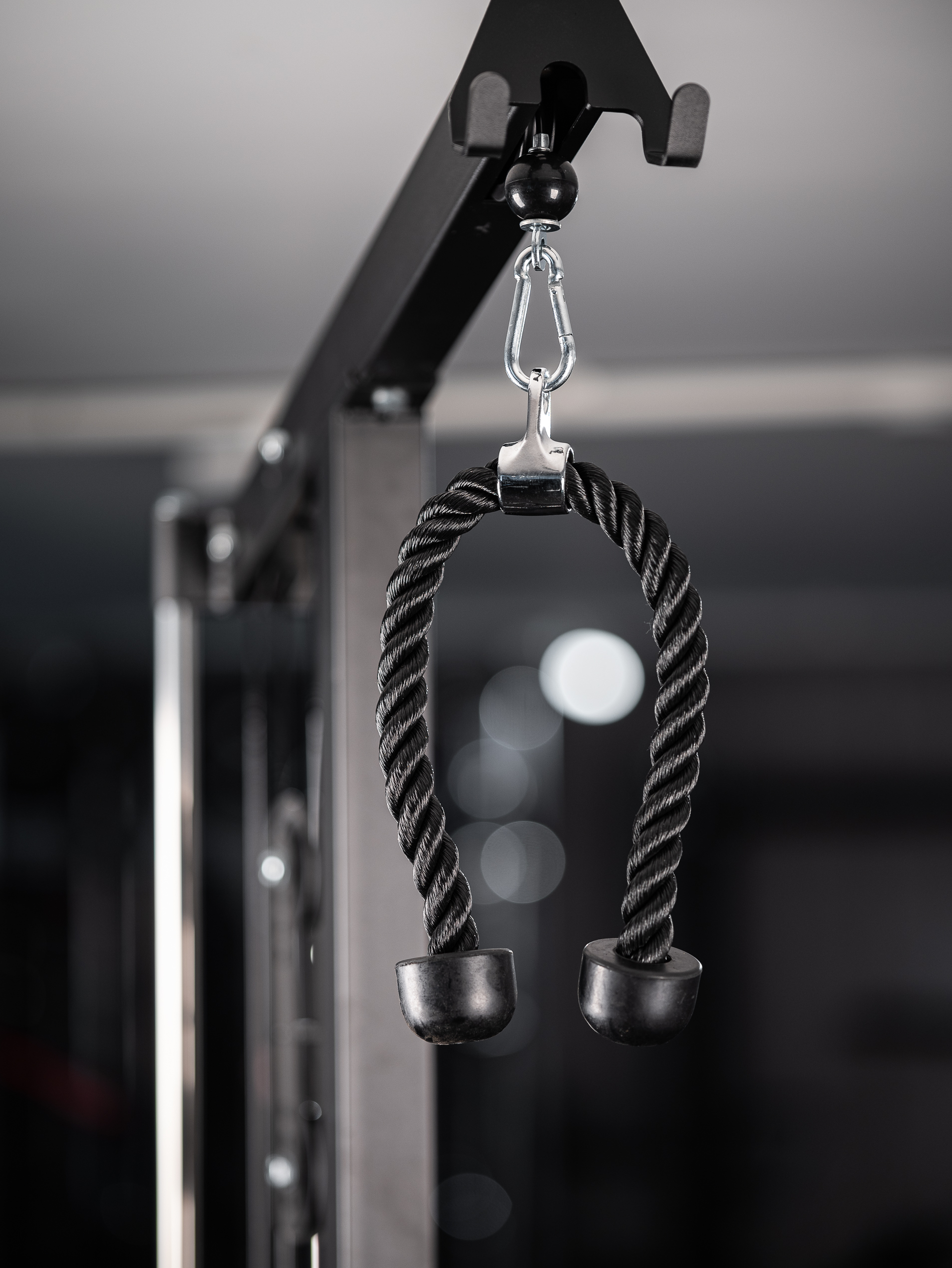

Triceps Rope 1 piece

Optional Accessories

Additional handles, ropes and bars for the upper and lower pulleys can be found in our Cable Pulley Accessories category.

At a Glance

  • Lat Pulldown Bar and Curl Bar with swivel joints, Triangle Rowing Handle, Ankle Strap and Triceps Rope included
  • 38 cm seat height combined with a 220 cm frame height for a full range of motion during Lat Pulldowns
  • Plate-loaded design compatible with 50 mm weight plates, weight plates not included
  • Weight carriage guided by two heavy-duty chrome-plated guide rods, 1:1 pulley ratio
  • Thigh roller pads with 6 height adjustment positions, seat pad measuring 39 x 27 cm with 5.5 cm padding thickness
  • 60 x 60 mm steel frame with a heavy-duty diamond-patterned steel base plate

7 of 7 reviews

Average rating of 5 out of 5 stars


100%

0%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


7 reviews

Von: Hans-Joachim H. · September 3, 2026 12:42 PM

Review with rating of 5 out of 5 stars

immer wieder gerne!

Mittwoch mittags bestellt - Freitag Vormittag wurde geliefert - also keine 48 Stunden -
Maschine läuft einwandfrei
Anleitung für zusammenbau war auch ordentlich!

Von: Abdussamed D. · December 12, 2025 8:57 PM

Review with rating of 5 out of 5 stars

Top

Macht richtig Spaß und ich bin nach einigen Trainingseinheiten sehr zufrieden. Einfach im Aufbau, spürbare 1:1-Übersetzung und schneller Support bei Fragen

Von: Sascha M. · May 19, 2025 4:05 PM

Review with rating of 5 out of 5 stars

Breites Spektrum von Übungen für guten Preis

Habe mich nach einiger Recherche für diese Station zur Ergänzung meines Homegym entschieden:

Pros:
- Gute Ausstattung mit vielen Griffen ermöglicht breite Trainingspalette
- Höhe ist ausreichend, um sich bei 1,85m Größe im Latzug voll zu strecken
- Stellmaß ist vergleichsweise Kompakt
- Gute Qualität und Rollen machen flüssiges Training möglich
- Im Markt sehr gutes Preis-Leistungsverhältnis
- Praktisch mit klappbaren Sitz und gut einstellbares Beinpolster

Cons:
- Bei Gewichten > 60kg etwas gerappel / wackeliges Gefühl beim ersten Zug zum Hinsetzen
- Qualität einzelner Griffe (Latstange und gerader Rudergriff) nicht besonders hoch

Cons:

Von: Rainer P. · December 18, 2024 4:21 PM

Review with rating of 5 out of 5 stars

Gute Qualität zu fairem Preis

Sehr gutes Preis-Leistungsverhältnis. Sehr gute Aufbauanleitung. Die Schrauben sind so verpackt und nummeriert, dass sie leicht jedem Schritt in der Anleitung zugeordnet werden können. Reibungsloser Kundenservice. Bei einem Teil war ein Bohrloch falsch gesetzt. Das Teil wurde mir unproblematisch ersetzt

Von: Roman · November 26, 2024 10:20 AM

Review with rating of 5 out of 5 stars

TOP Latzug Gerät.

Die Lieferung kam schnell und pünktlich mit der DHL Spedition. Alles war sehr ordentlich verpackt und beschriftet. Der Aufbau hat ca. 1,5 std. gedauert . War alles selbsterklärend. Die Schrauben sind alle beschriftet, so dass man eigentlich nichts falsch machen kann. Zum Gerät selber. Es steht total stabil und fest. Die Seile ziehen das Gewicht sauber und ohne ruckeln. Selbst bei schwereren Gewichten, läuft alles reibungslos, ähnlich wie im Studio. Gut finde ich, das neben der breiten Latzug Stange noch das Trizeps Seil, die enge Griffstange und die kurze Trizeps Stange dabei waren. Da spart man sich das im Anschluss noch dazu kaufen zu müssen. Mit der Auswahl an Stangen kann man vollumfänglich trainieren. Ich bin jedenfalls total begeistert. Absolute Kaufempfehlung

Von: Marco · June 21, 2024 9:28 AM

Review with rating of 5 out of 5 stars

Qualität und Stabilität

Am Samstag bestellt und am Donnerstag geliefert mit DHL Fracht und allen Hantelscheiben und Griffen die ich dazu bestellt habe als eine Lieferung auf einer Palette.

Wichtig ist, DHL Fracht liefert nur bis zur Haustür. Er läd von der Palette ab und das war’s.

Nachdem ich alles in die Wohnung geschleppt hatte, habe ich gleich mit dem Aufbau begonnen. Wir waren zu zweit und das war für 2 Stellen auch gut so ansonsten könnte man es auch gut allein aufbauen. Der Aufbau an sich ist wirklich einfach, die Schrauben Muttern usw sind nach Aufbauschritten sortiert. Ihr benötigt für den Aufbau 2 Schraubenschlüssel Größe 18!

Ich hatte vorher alles ausgepackt und nach Bauschritten auf den Boden gelegt, so konnte man es einfach wegnehmen für den jeweiligen Schritt und sehen was man dafür braucht.

Insgesamt waren es gute 1,5 h würde ich sagen. Wer geübt ist schafft das sicher deutlich schneller.

Das Ding steht und man merkt bereits beim Aufbau die Qualität und Stabilität. Nichts wackelt, es steht auch ohne aufgeladene Gewichte sicher und wackelt nicht. Die gesamte Seilführung ist wirklich gut, nichts knarrt oder knackt, die Rollen laufen ruhig.

Kann ich uneingeschränkt empfehlen!

Von: Achim · June 6, 2024 5:39 PM

Review with rating of 5 out of 5 stars

Top Qualität

Ein sehr guter Latzug an dem es Spaß macht zu trainieren. Läuft sehr gut und steht ziemlich stabil. Durch seine Höhe von 2,20 kann man sehr gut über die volle ROM trainieren. Der Aufbau war einfach und auch alleine problemlos möglich.
